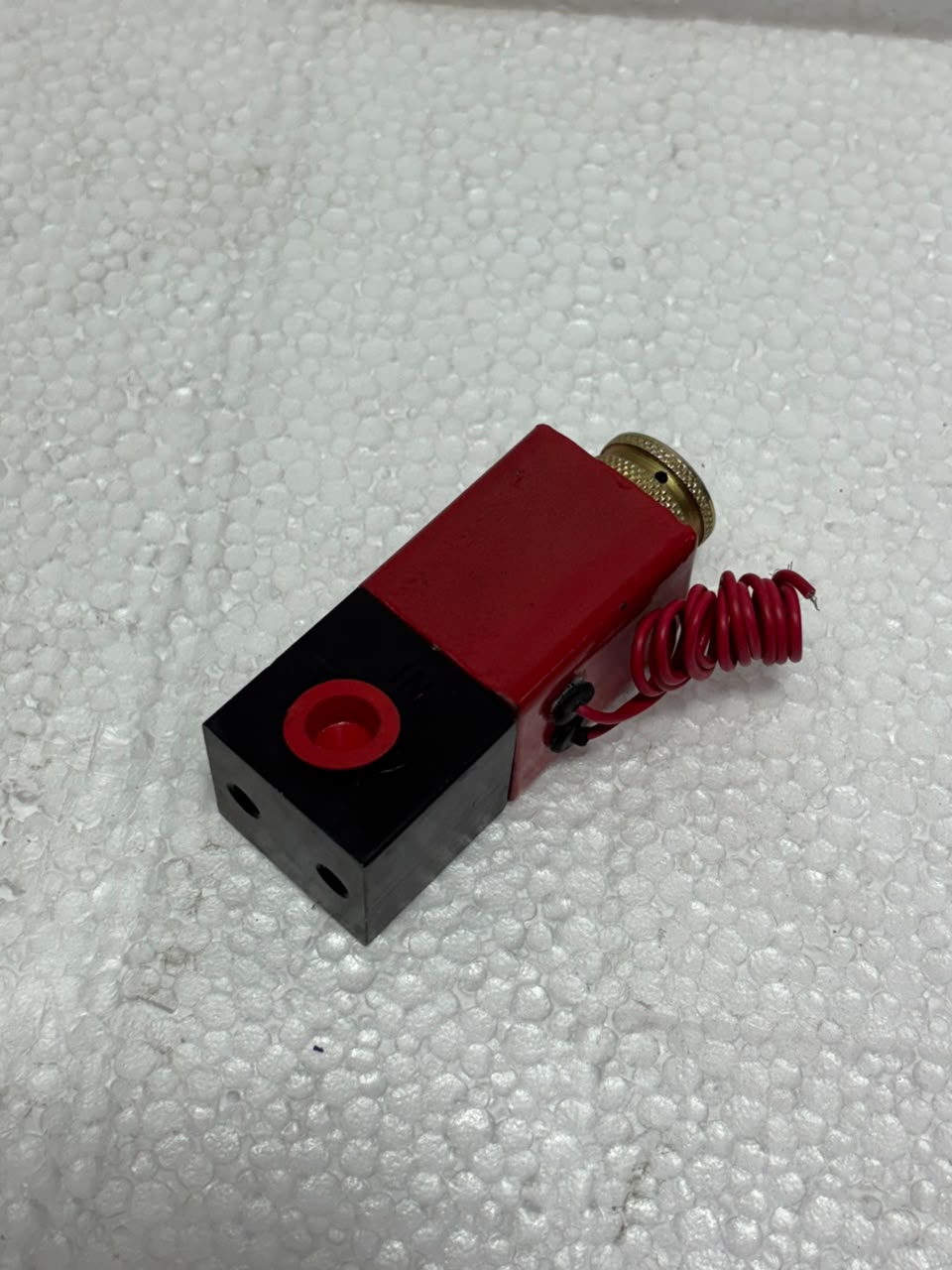

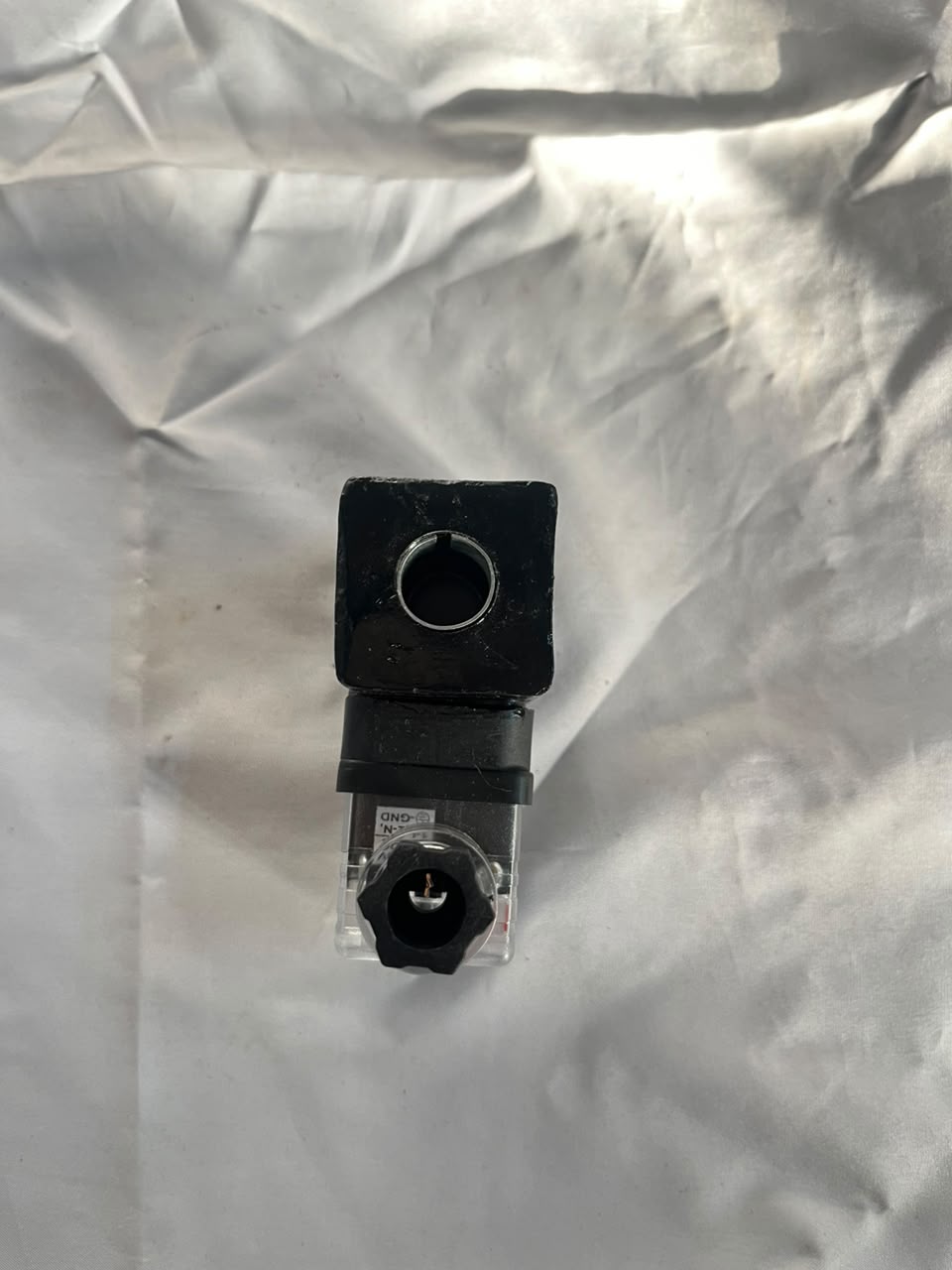

Solenoid Valve
Pilot solenoid valves used to control air supply to our pneumatic actuator range.
Solenoid Valve

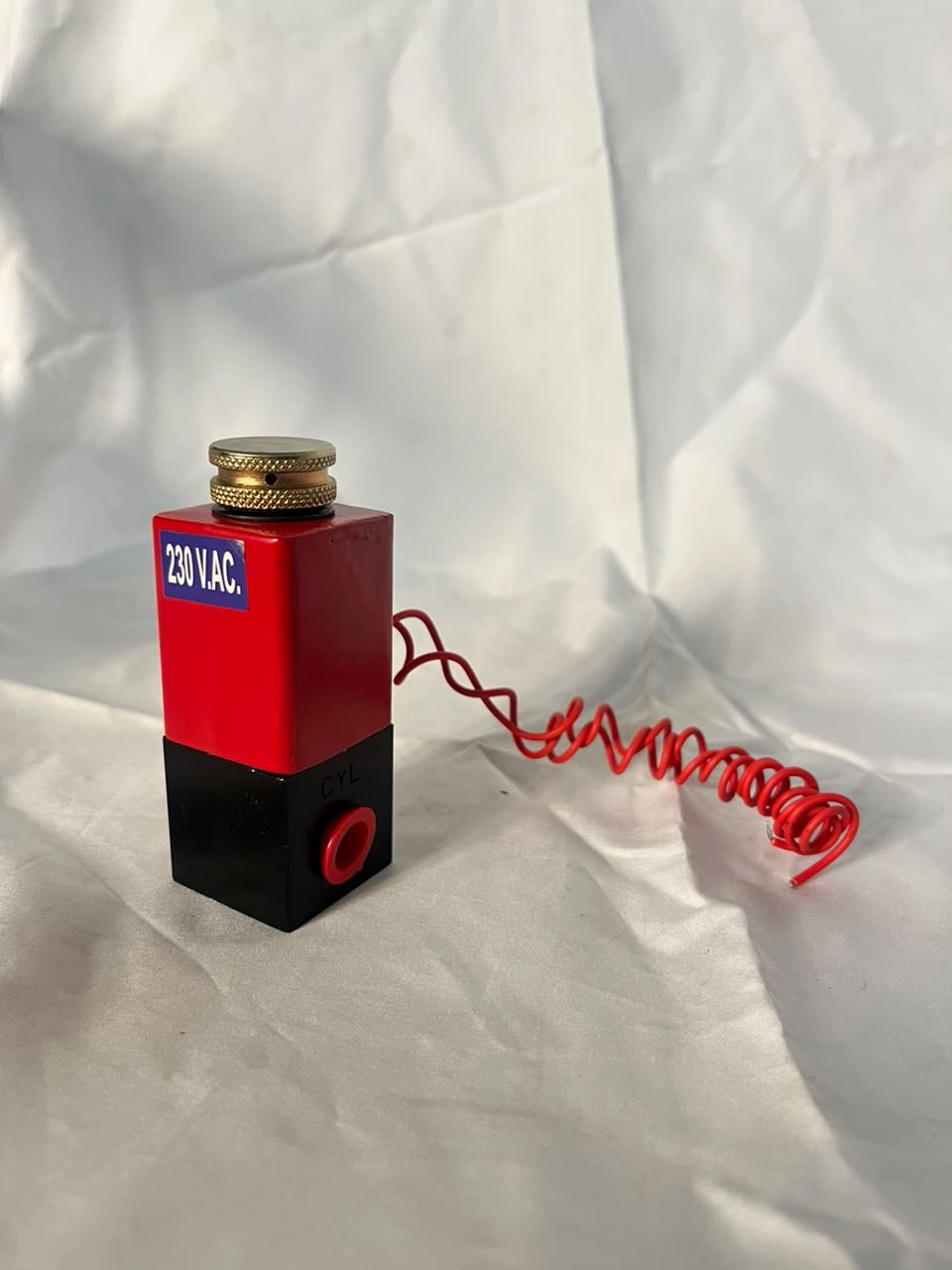

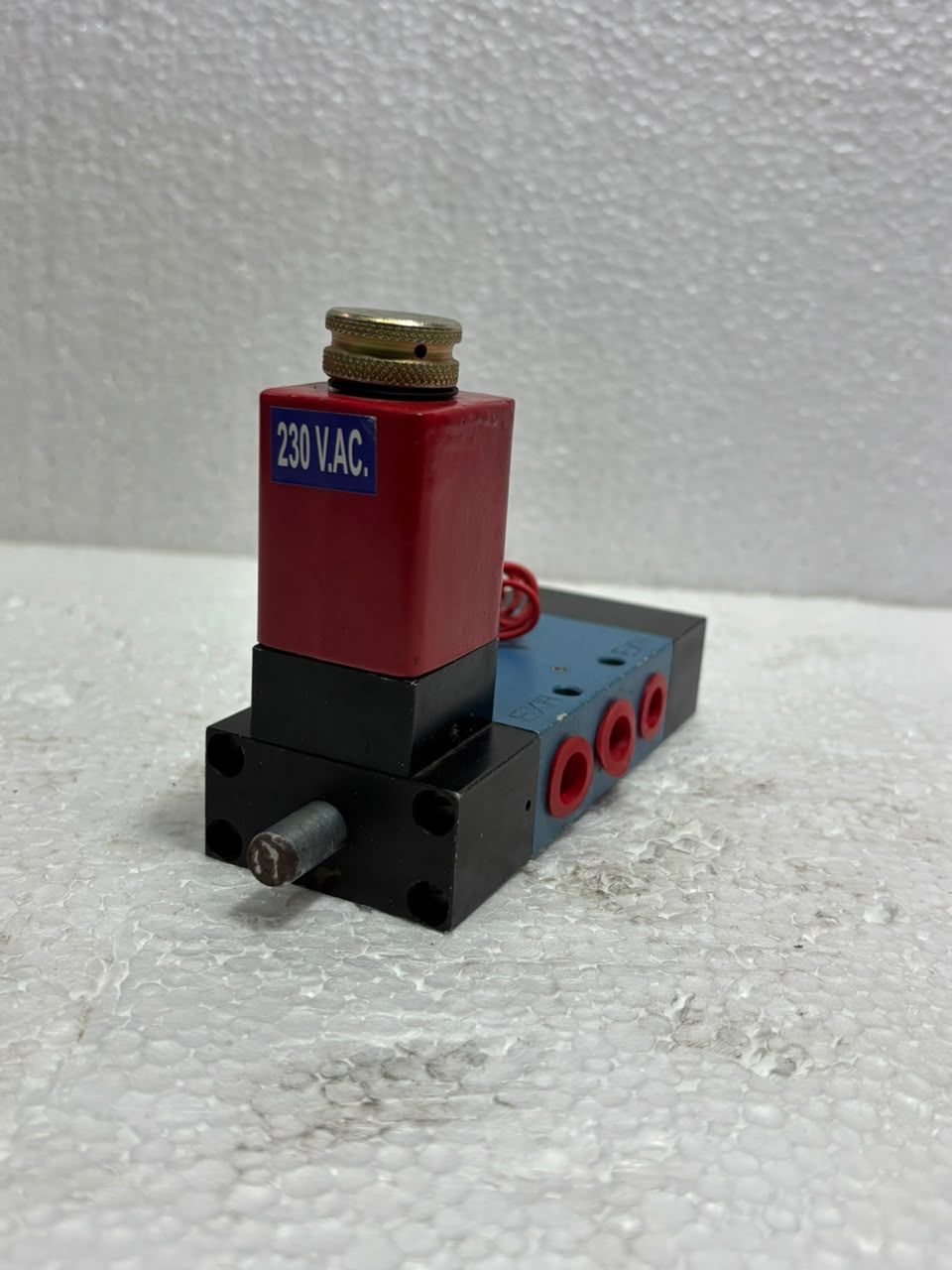

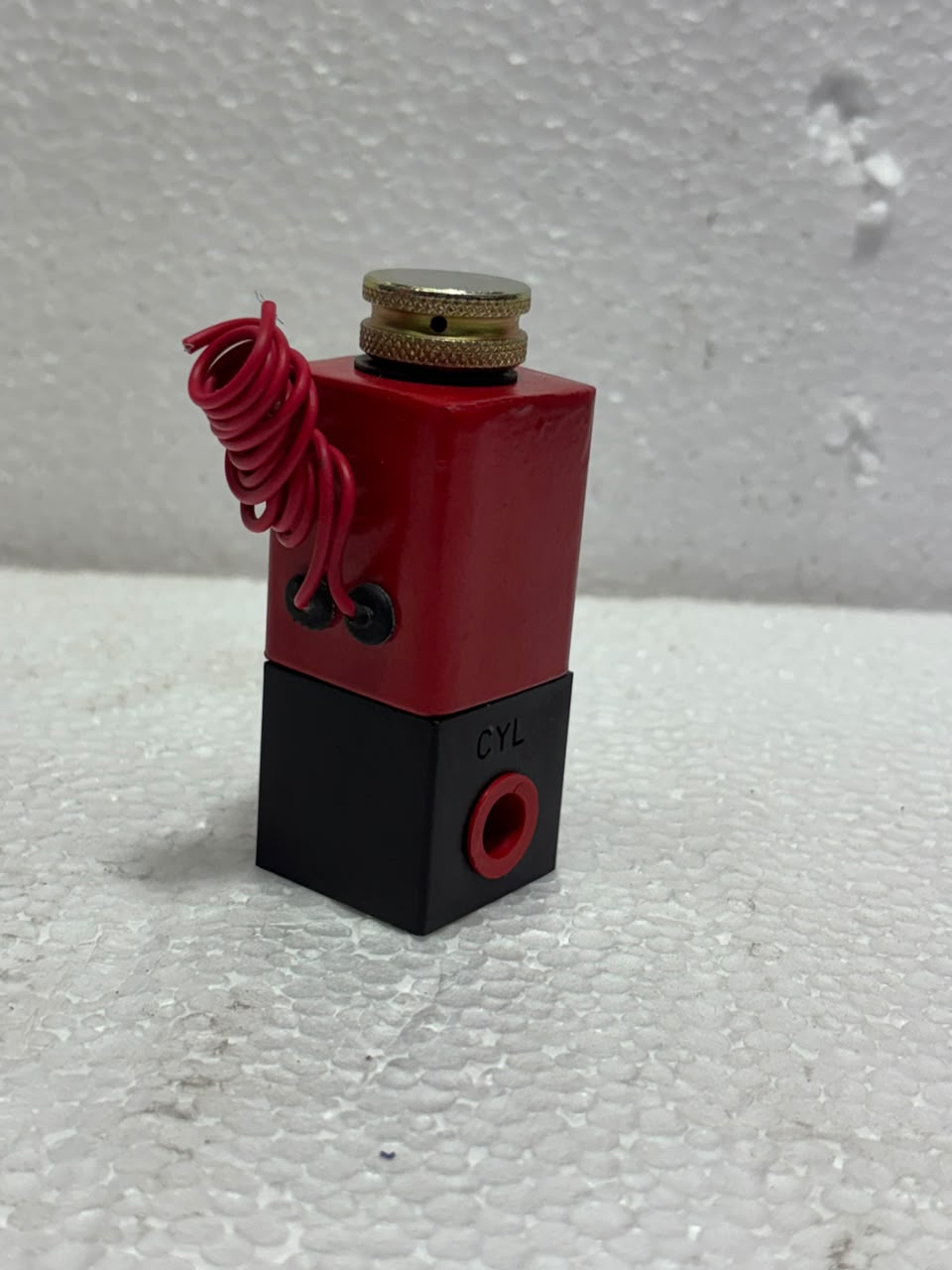

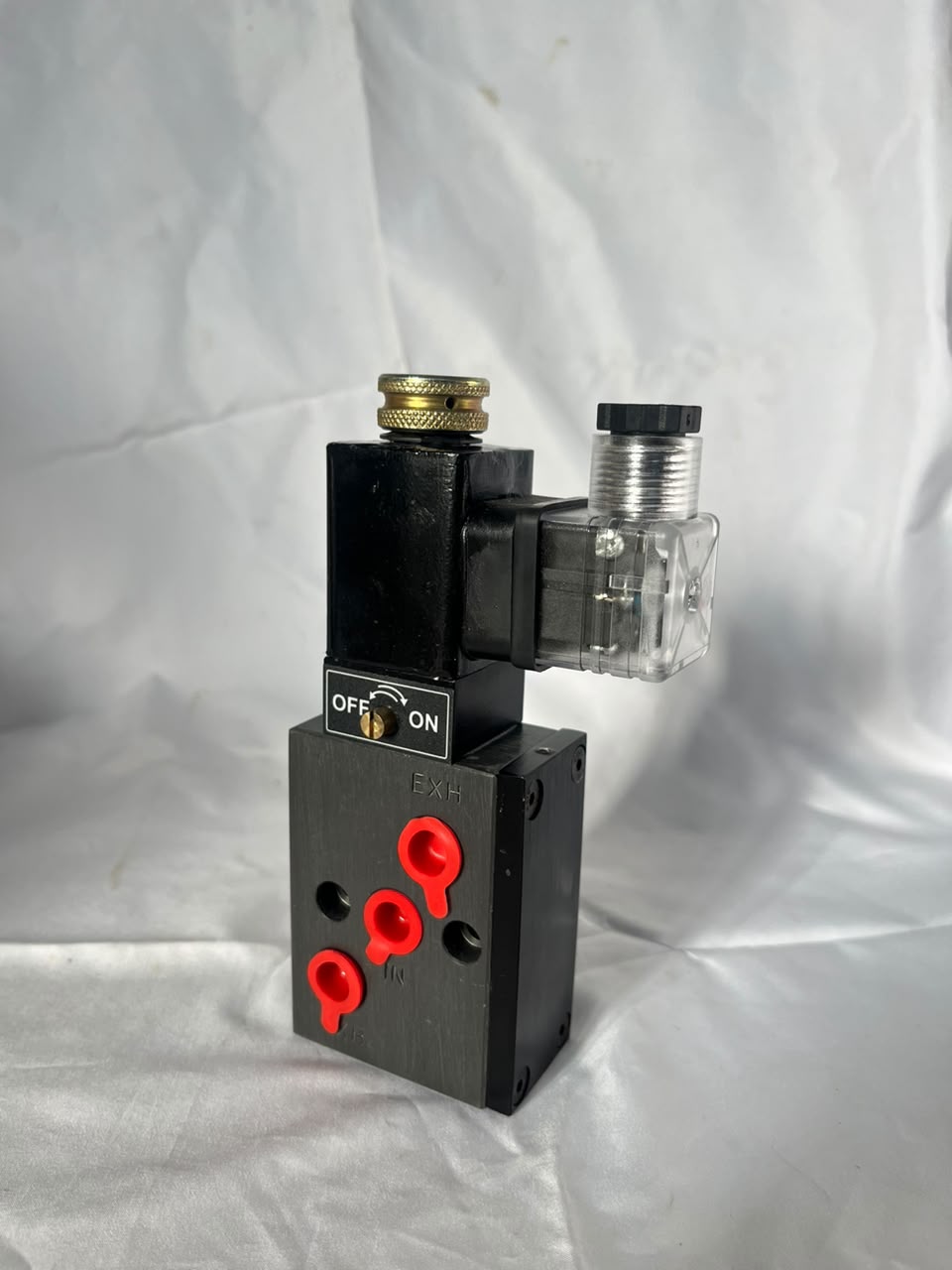

Our solenoid valves provide fast, electrically actuated on/off control of the compressed-air supply to our pneumatic actuator range, and can be mounted directly to the actuator's NAMUR top-plate for a compact, self-contained control package.
Direct-acting and pilot (servo) operated designs are available in 2-way and 3-way, normally-closed or normally-open configurations, matched to the actuator's air-flow requirement for fast, reliable stroke speed.
Engineered For Reliable Performance
- Direct acting and pilot (servo) operated designs
- 2-way and 3-way flow configurations
- NC (normally closed) and NO (normally open) options
- Direct mounting to NAMUR top-plate of pneumatic actuators

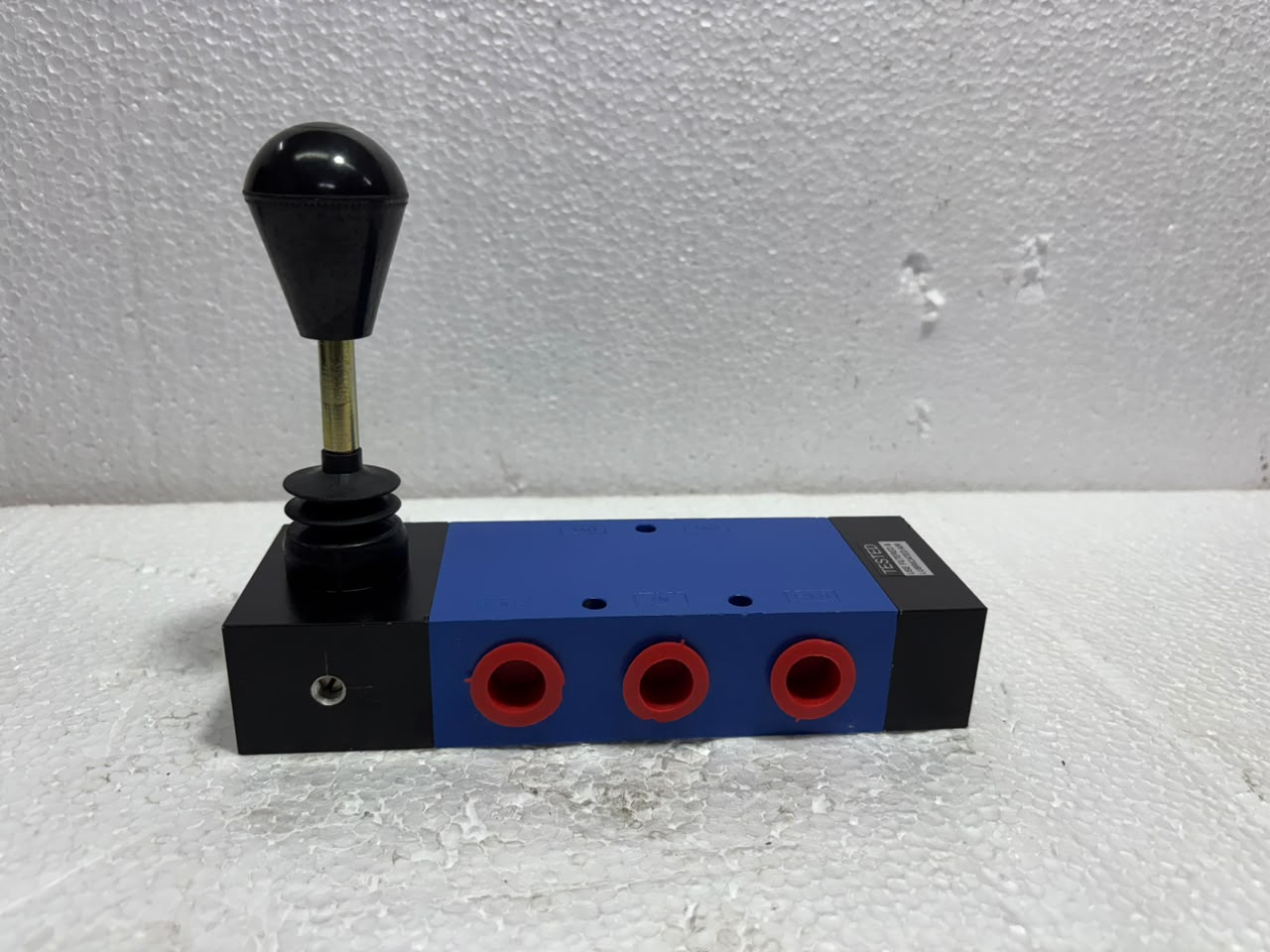

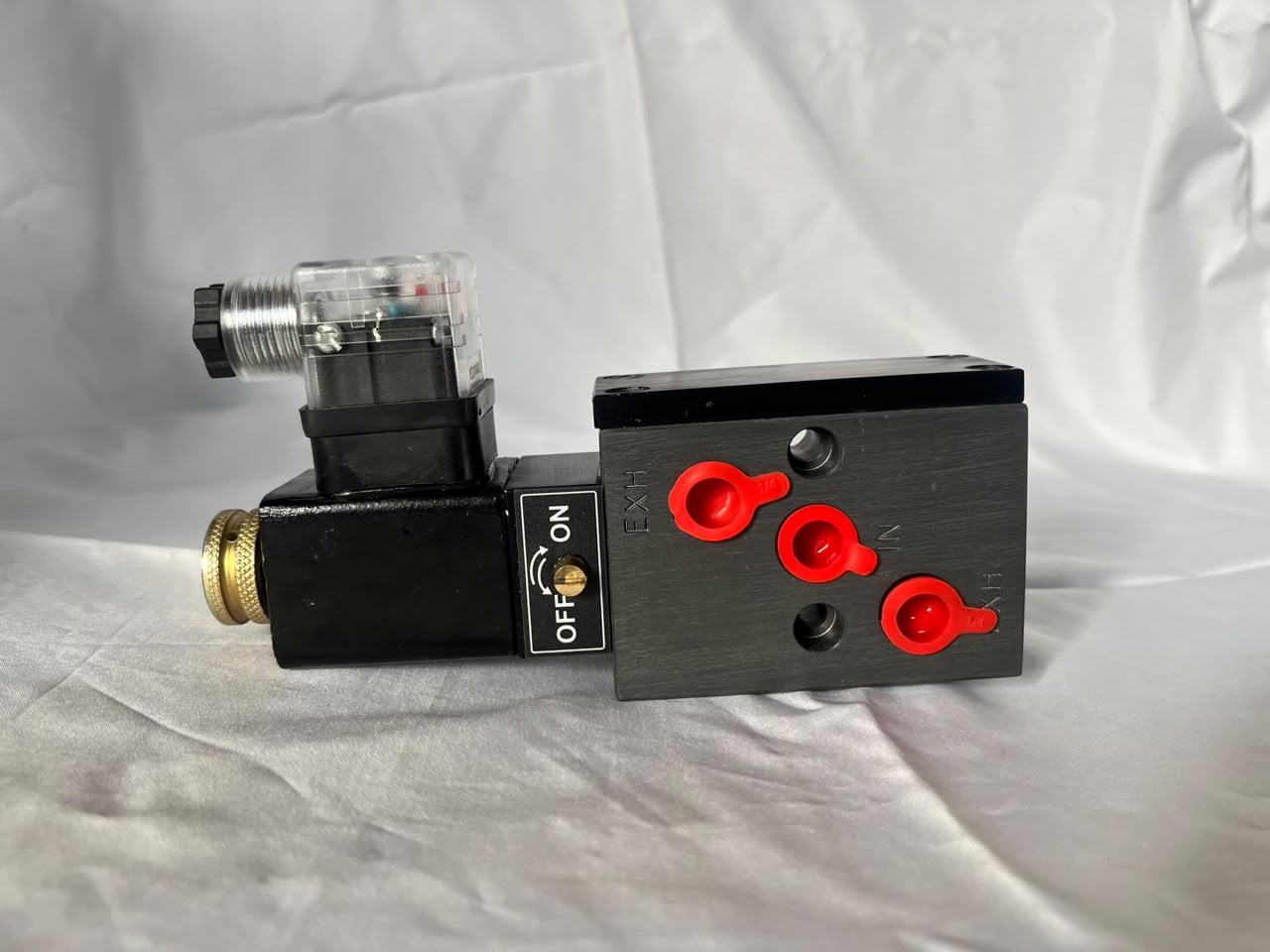

- Manual override for local operation during maintenance

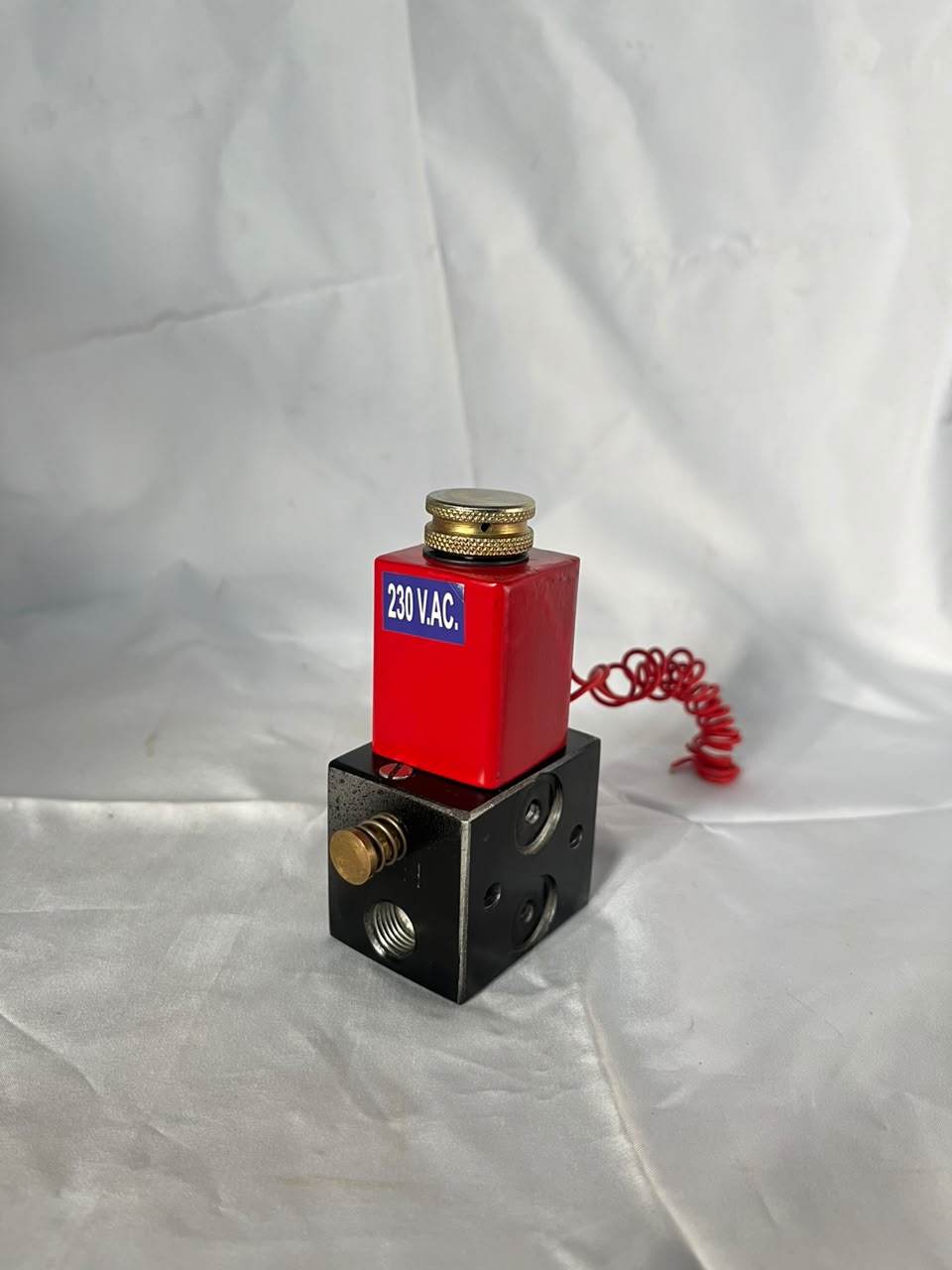

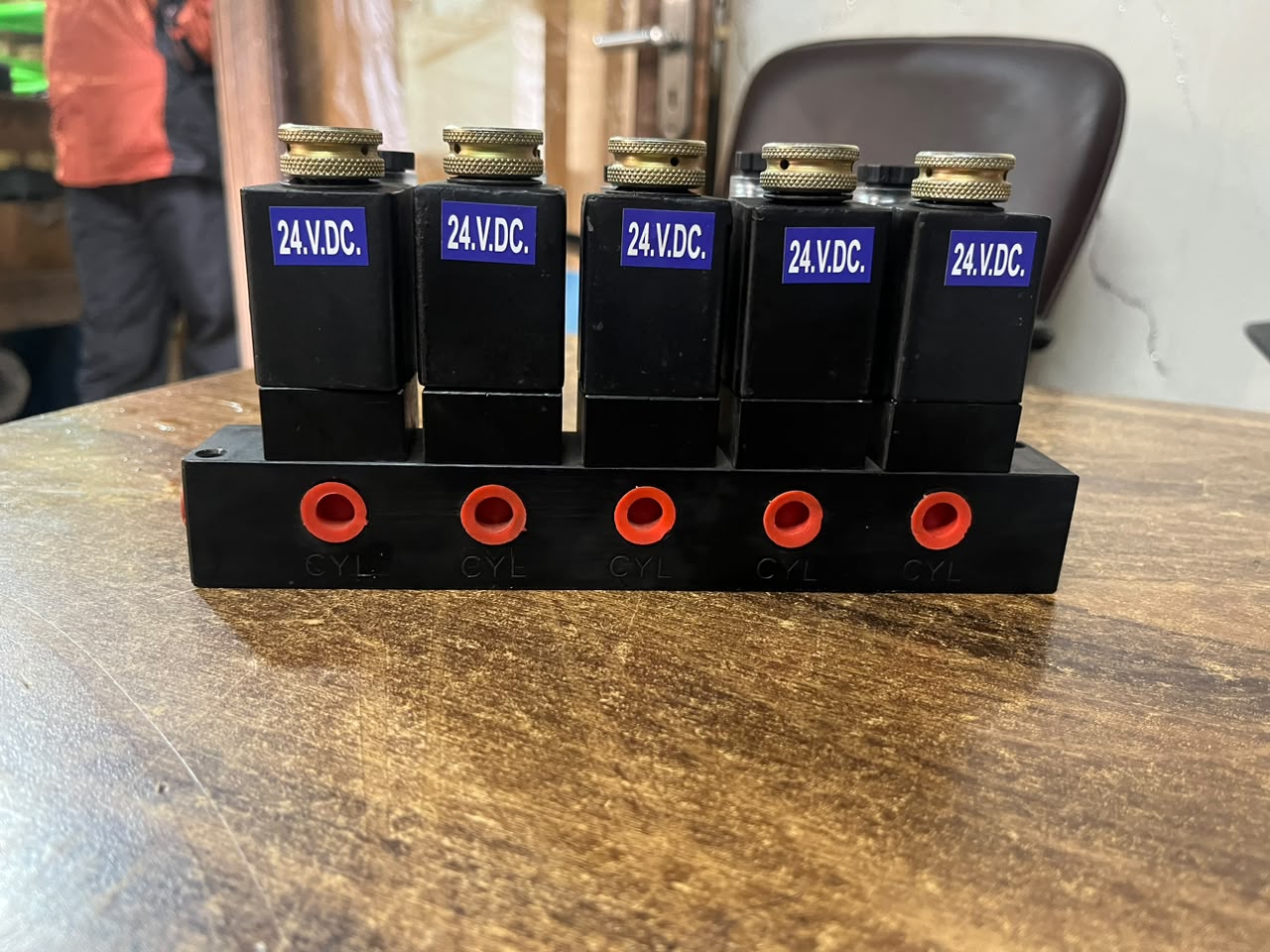

- Compatible with 24V DC, 110V / 230V AC supplies
Specification Sheet
Standard configuration shown below — custom torque, pressure, material and end-connection combinations are available on request.
| Configuration | 2-way / 3-way, direct or pilot operated |
|---|---|
| Switching | Normally Closed (NC) or Normally Open (NO) |

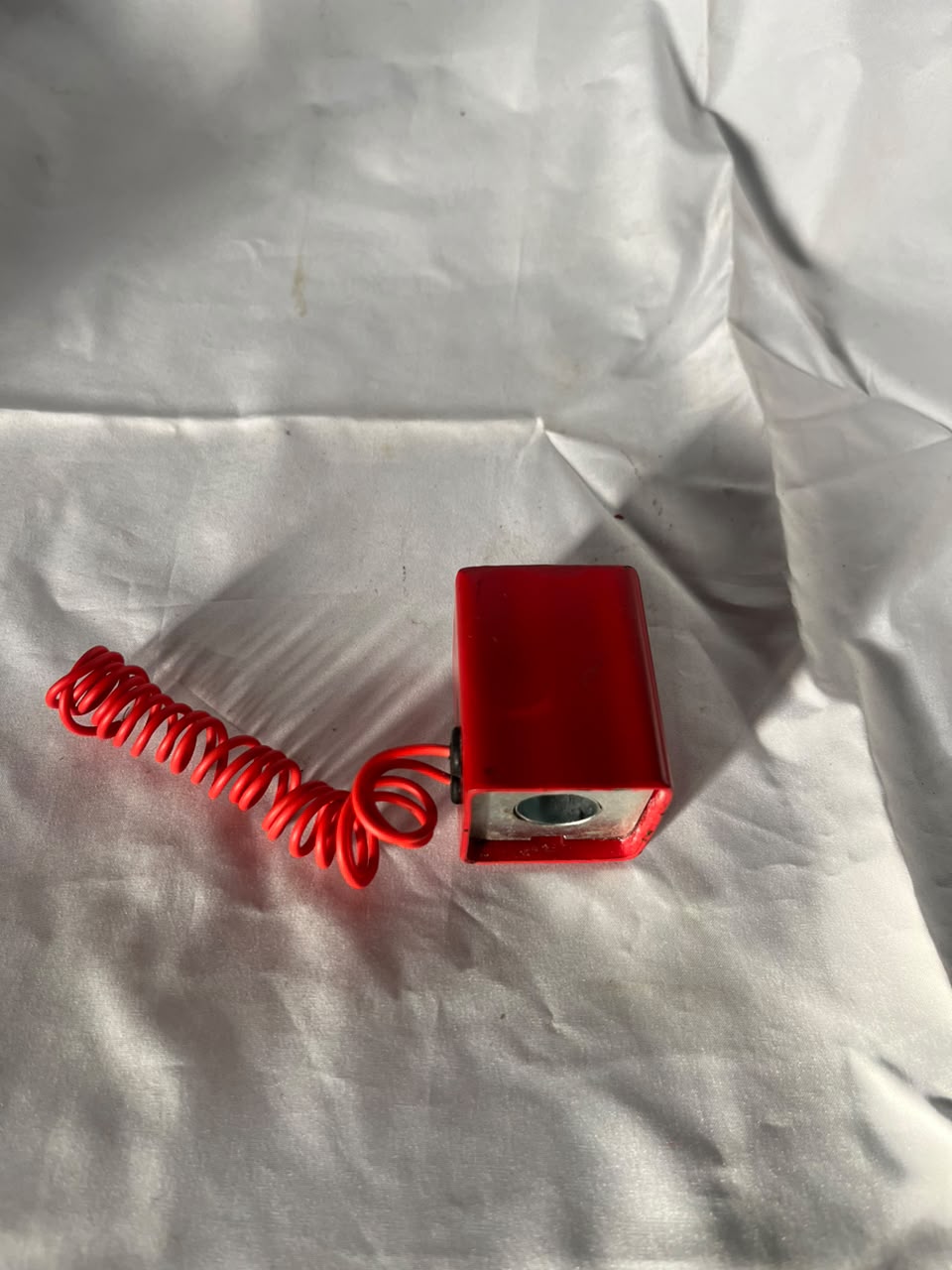

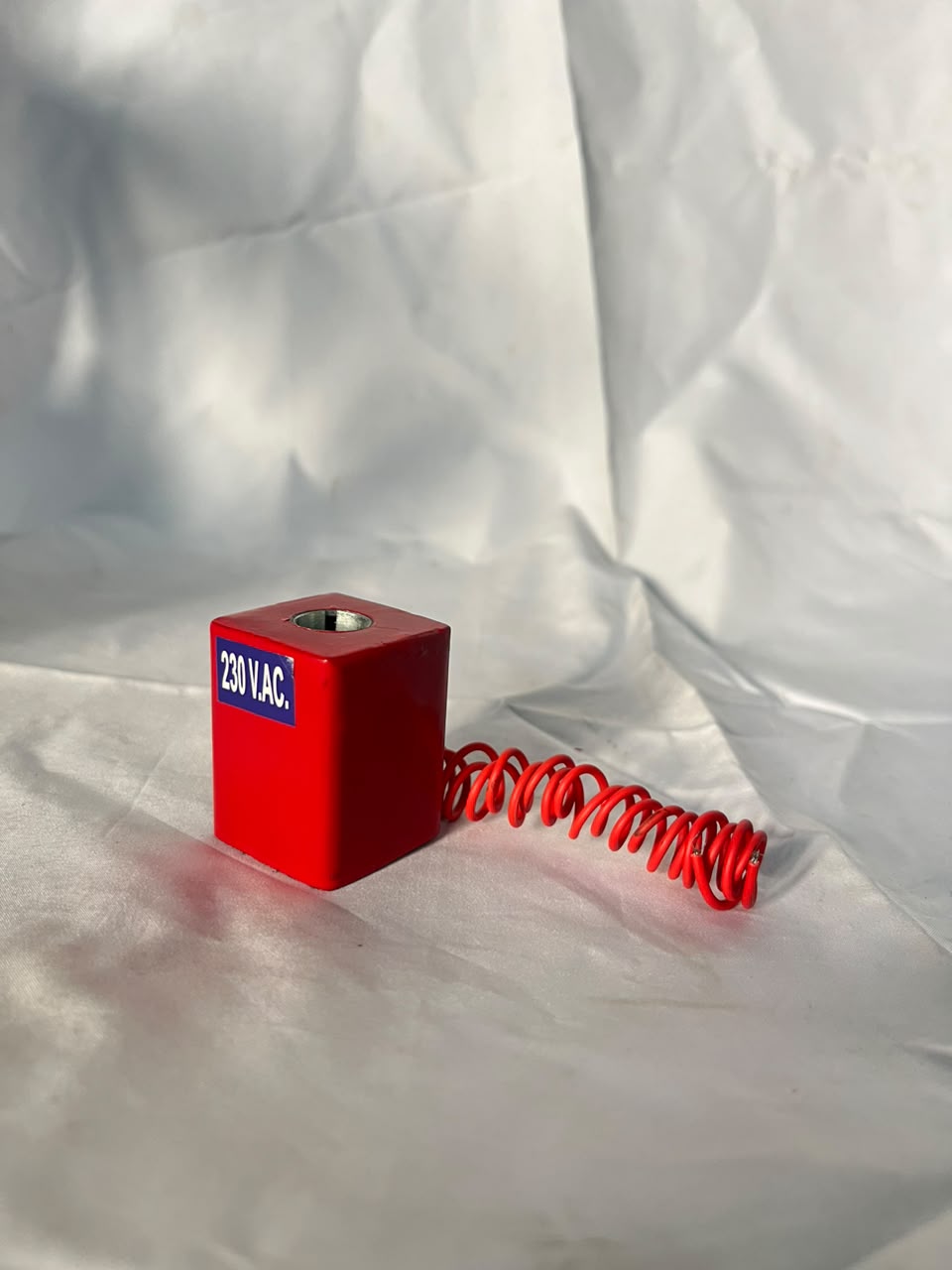

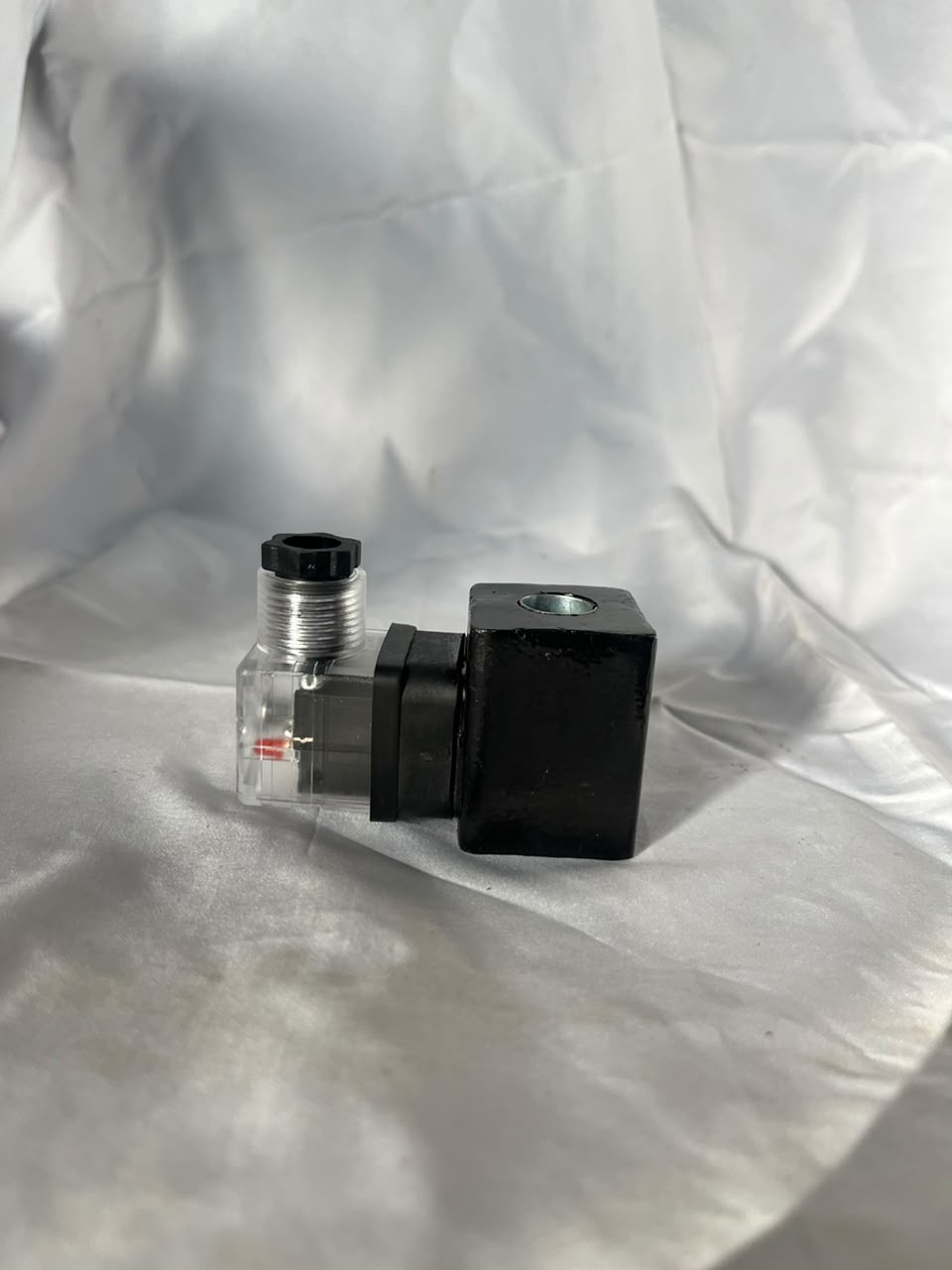

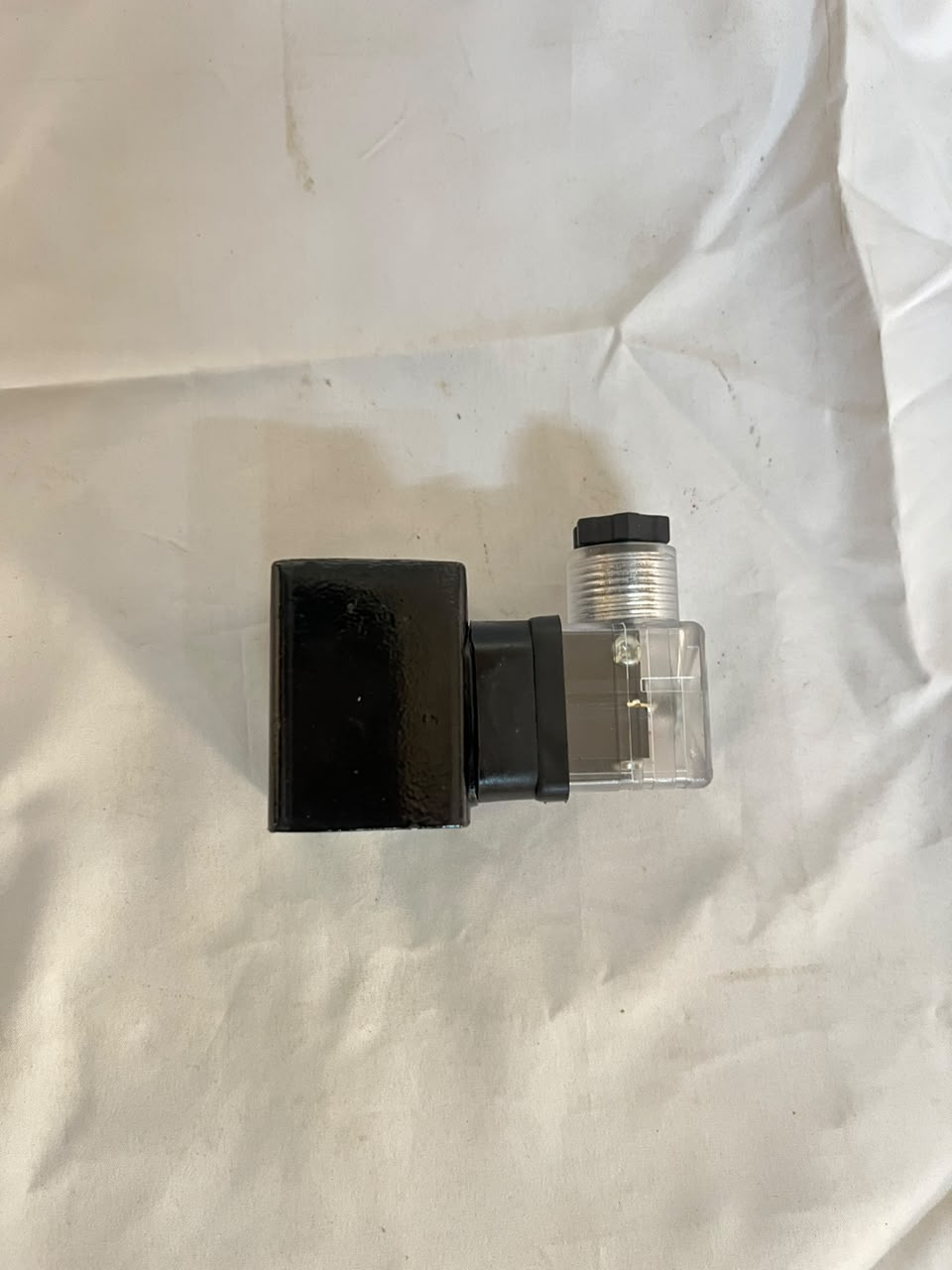

| Coil voltage | 24V DC, 110V AC, 230V AC |
| Mounting | Direct to NAMUR top-plate of pneumatic actuator |
| Manual override | Provided for local maintenance operation |
Where It's Used
Solenoid Valve — Technical Datasheet
Full dimensional drawings, torque/thrust tables and material certificates (PDF)
