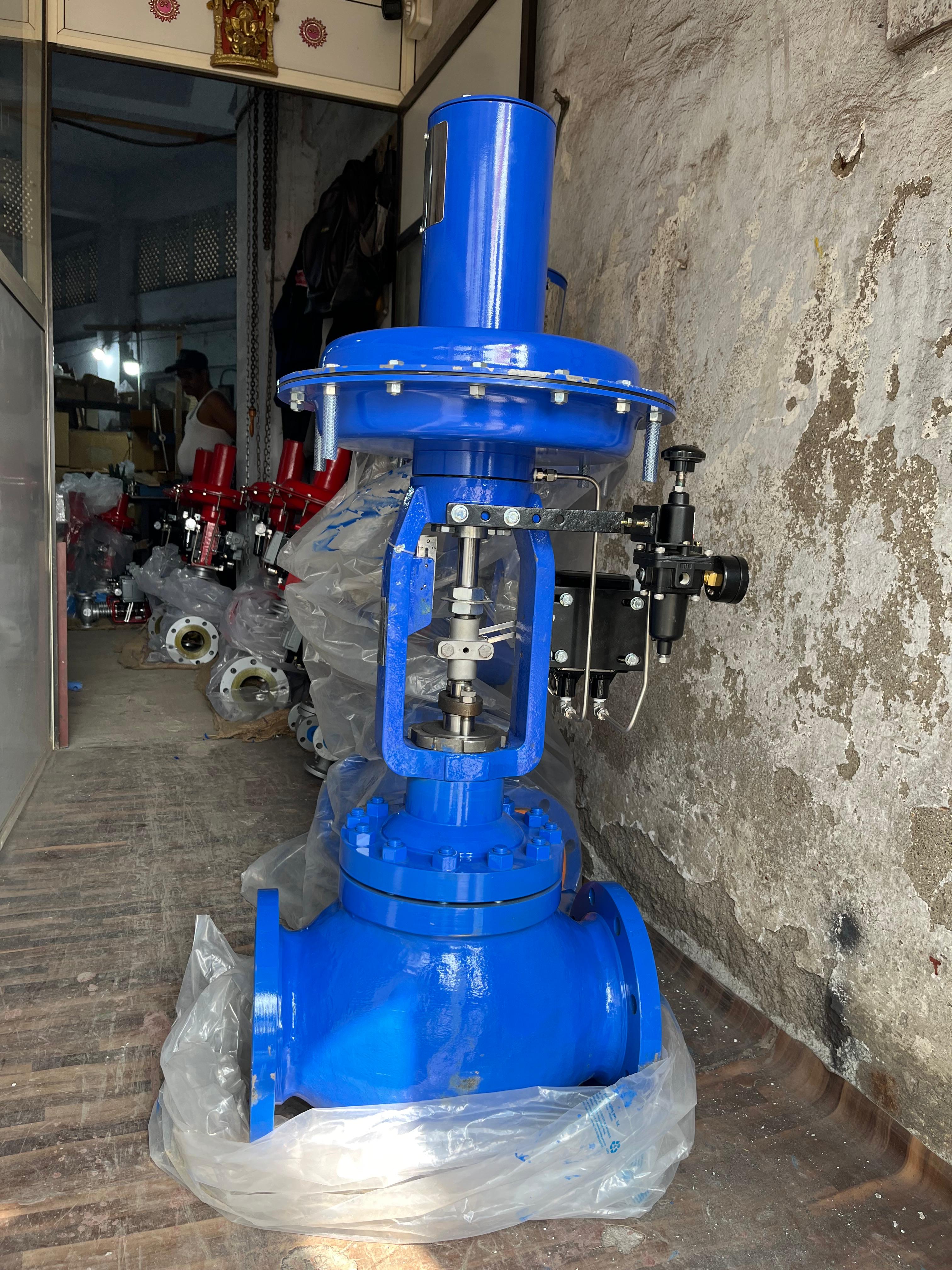

Gate, Globe & Check Valves
Our gate, globe and check valve range covers three of the most widely specified valve types in process piping: gate valves for straight-through full-bore isolation, globe valves for accurate flow regulation, and check valves for automatic non-return protection of pumps and compressors.
Rising stem (OS&Y) and non-rising stem configurations are available, and gate and globe valves can be automated with our own electric or pneumatic actuator range where remote or automated operation is required.
Engineered For Reliable Performance
- Gate valves for bi-directional, low-resistance isolation
- Globe valves for precise throttling and flow regulation
- Swing and lift check valve designs for non-return duty
- Rising stem (OS&Y) and non-rising stem configurations
- Manual handwheel or actuated (electric/pneumatic) operation
Specification Sheet
Standard configuration shown below — custom torque, pressure, material and end-connection combinations are available on request.
| End connection | Flanged, Butt-weld, Screwed |
|---|---|
| Bonnet type | Bolted bonnet |
| Operation | Handwheel or actuated (electric/pneumatic) |
Where It's Used
Gate, Globe & Check Valves — Technical Datasheet
Full dimensional drawings, torque/thrust tables and material certificates (PDF)
