Butterfly Valve
Motorised and pneumatic-actuated butterfly valves, wafer type, tight shut-off.
Butterfly Valve

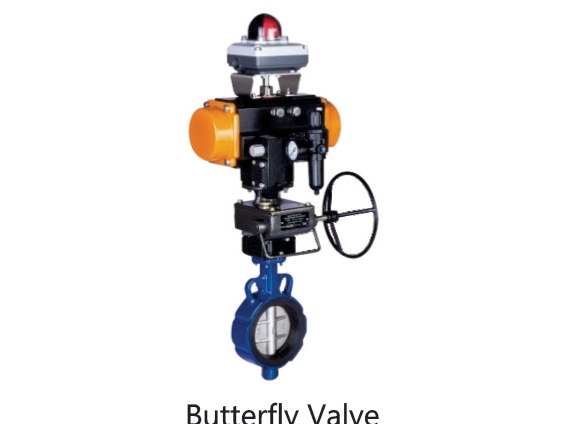

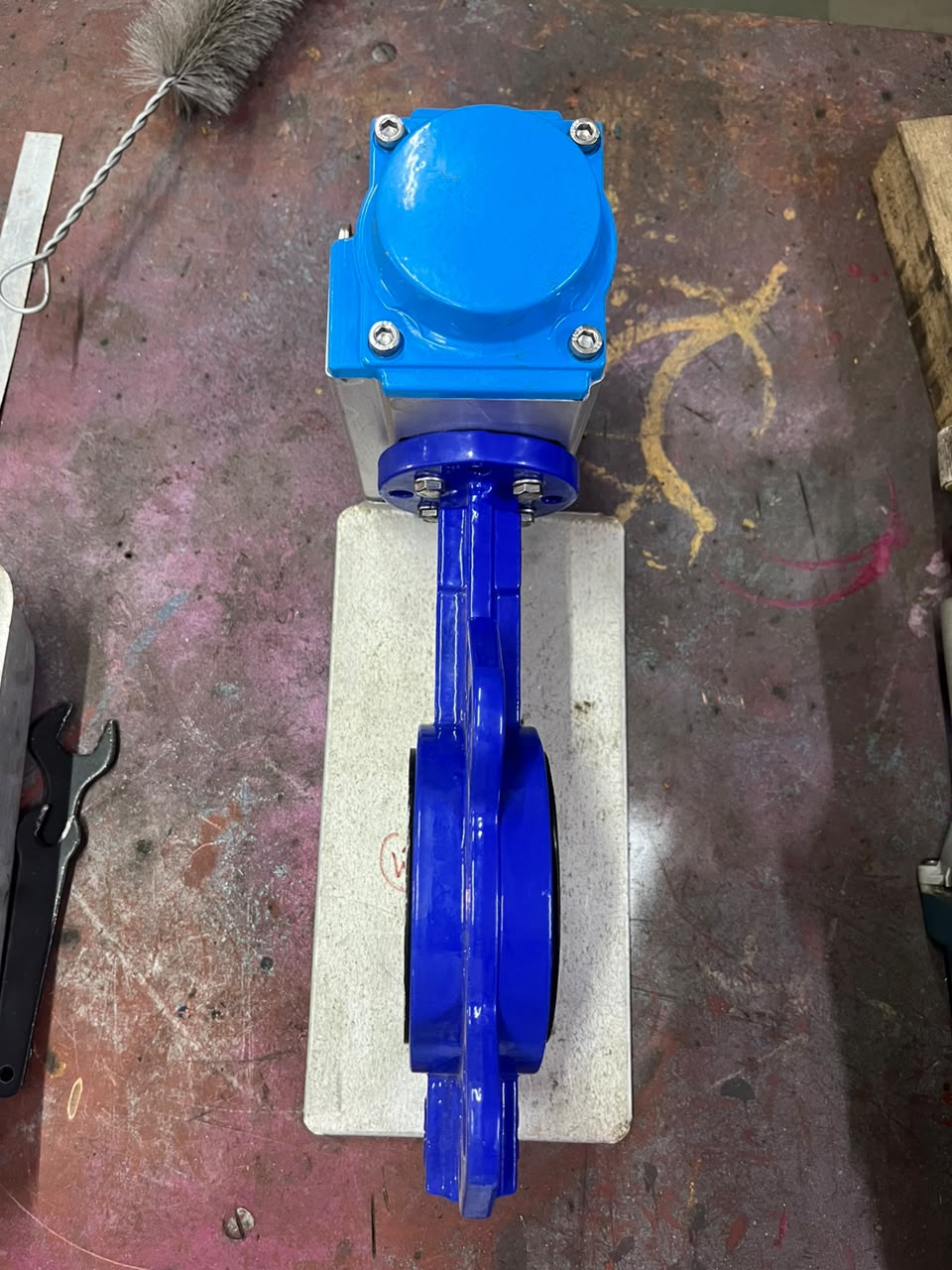

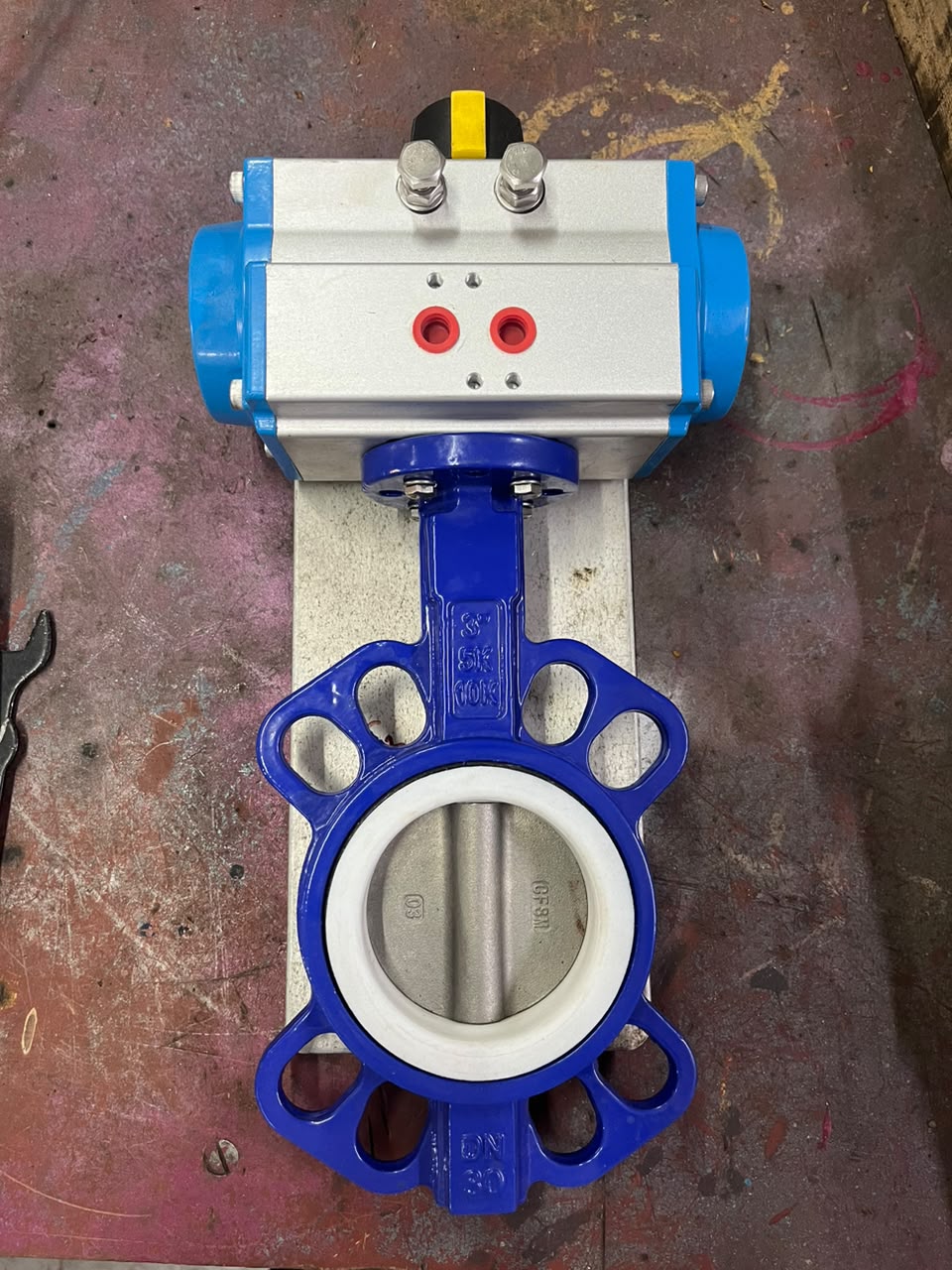

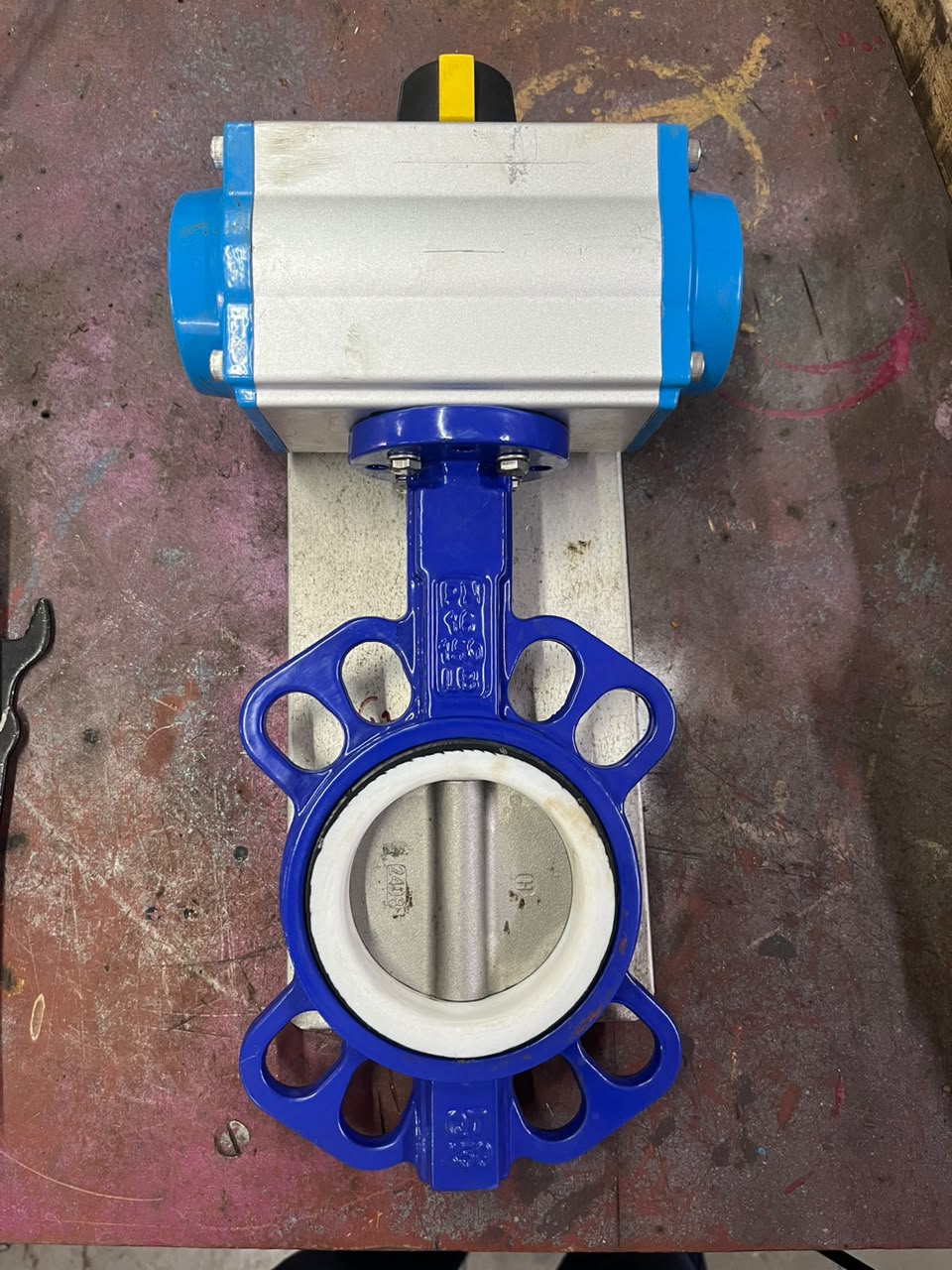

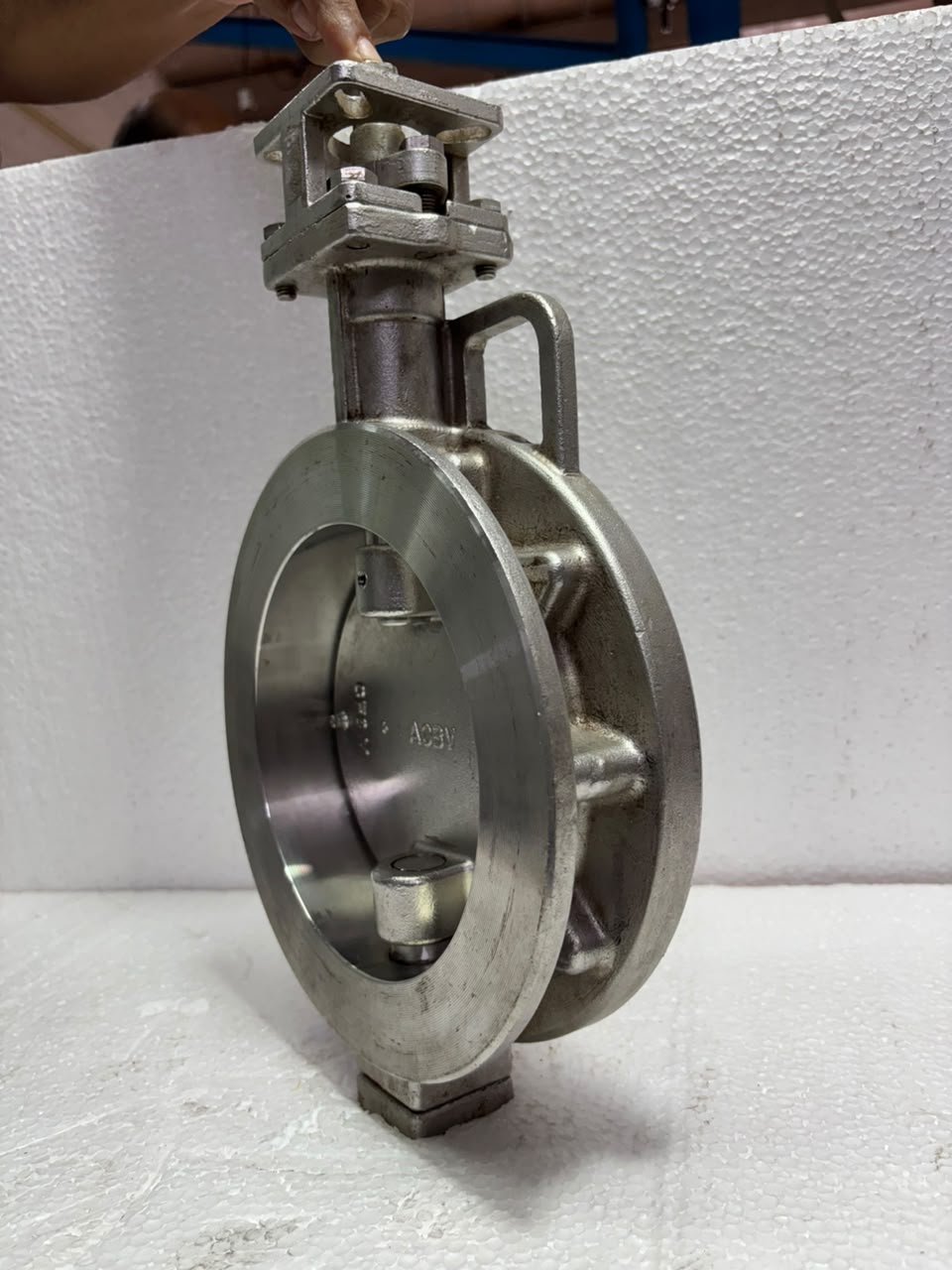

Our wafer-type butterfly valve is built for tight shut-off and is offered both as a motorised assembly — automated with our own QT-series electrical actuator through a dedicated valve mounting bracket and coupling — and as a pneumatic-actuated assembly for fast-cycling duty, optionally fitted with a positioner for proportional control.
Body and flange are available in Cast Iron, WCB, SS304 or SS316 investment casting, with a CF8/CF8M disc and a choice of Nitrile, Neoprene, Butyl, EPDM, Silicone or Viton seals to suit the process media and temperature.
Engineered For Reliable Performance
- Motorised (QT-series electric actuator) or pneumatic actuated
- Wafer type body for tight shut-off
- Dedicated valve mounting bracket & coupling for the electric version
- Optional positioner for proportional pneumatic control
- Disc in ASTM A351 Gr. CF8 / CF8M
- Seal choice: Nitrile, Neoprene, Butyl, EPDM, Silicone or Viton
Specification Sheet
Standard configuration shown below — custom torque, pressure, material and end-connection combinations are available on request.
| Body / Flange | Cast Iron, WCB, SS304, SS316 (investment casting) |
|---|---|
| Disc material | ASTM A351 Gr. CF8 / CF8M |
| Spindle / Pin | AISI 410, SS304 or SS316 |
| Seal material | Nitrile, Neoprene, Butyl, EPDM, Silicone, Viton |
| End connection | Wafer type |
| Actuation | Motorised (QT-series electric) or Pneumatic |
Where It's Used
Butterfly Valve — Technical Datasheet
Full dimensional drawings, torque/thrust tables and material certificates (PDF)
