Electrical Rotary Actuator
Self-contained quarter-turn electric actuator — QT-E/F, QT-A/B/C/D and high-torque QTR series.
Electrical Rotary Actuator

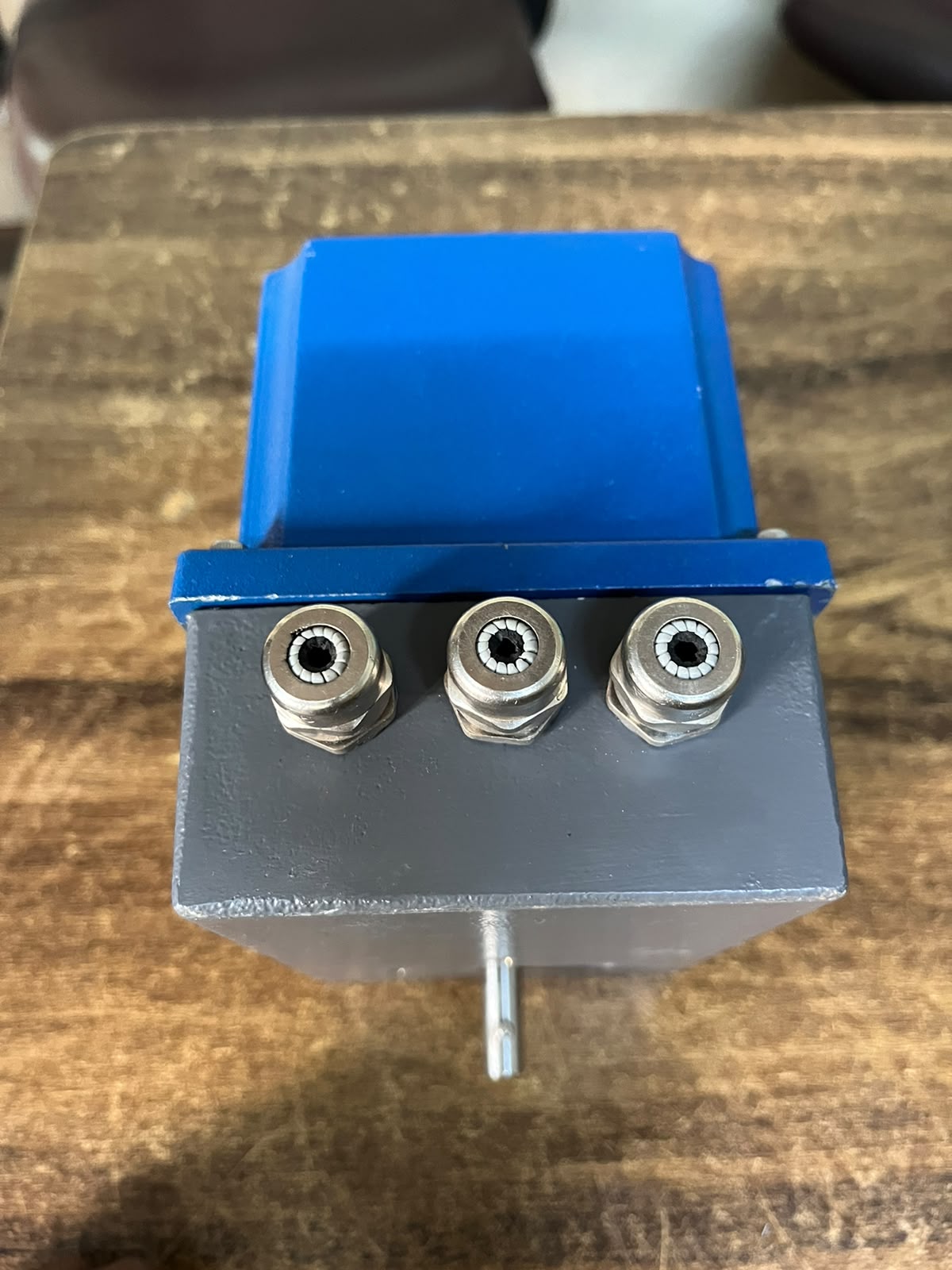

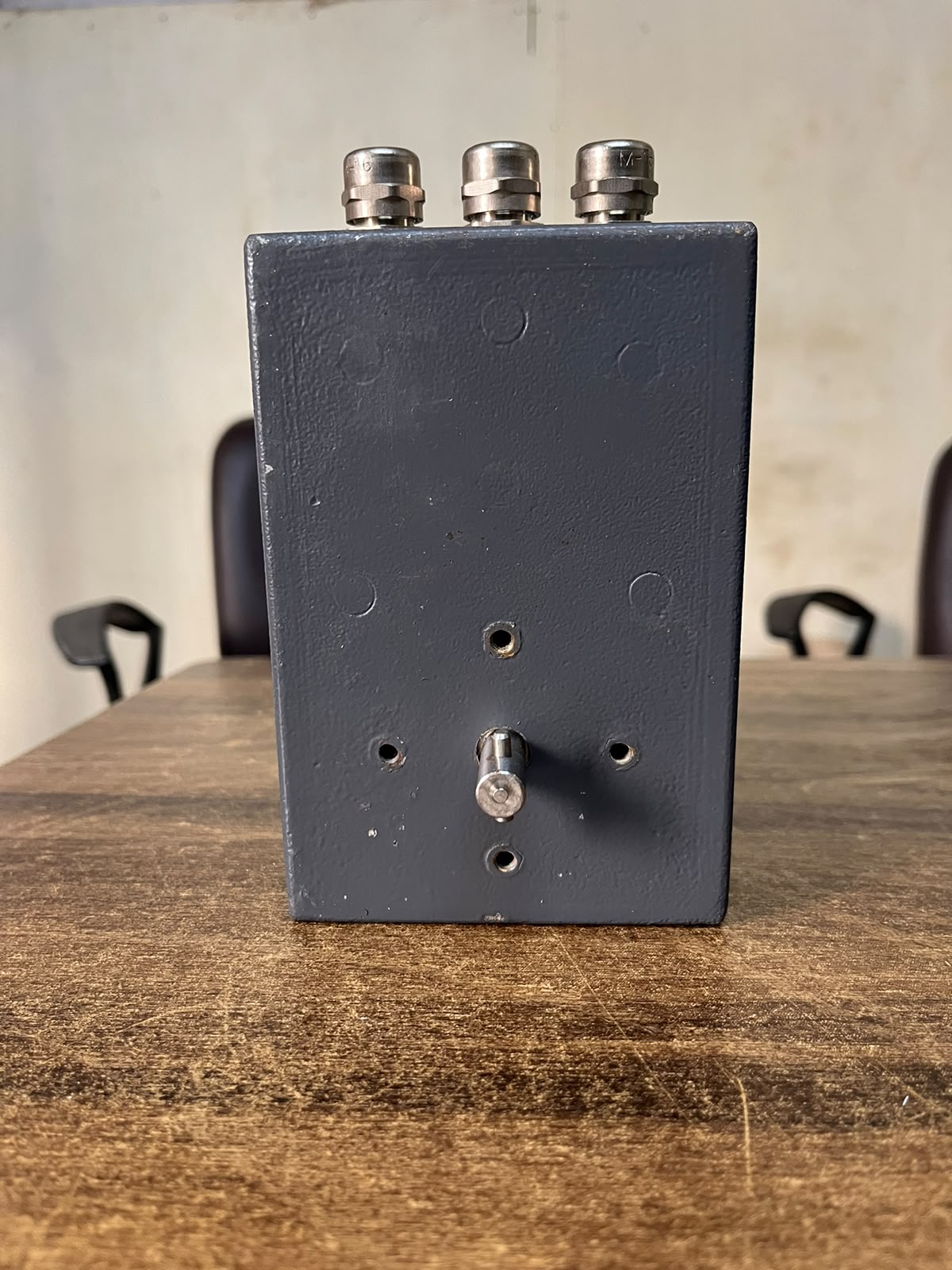

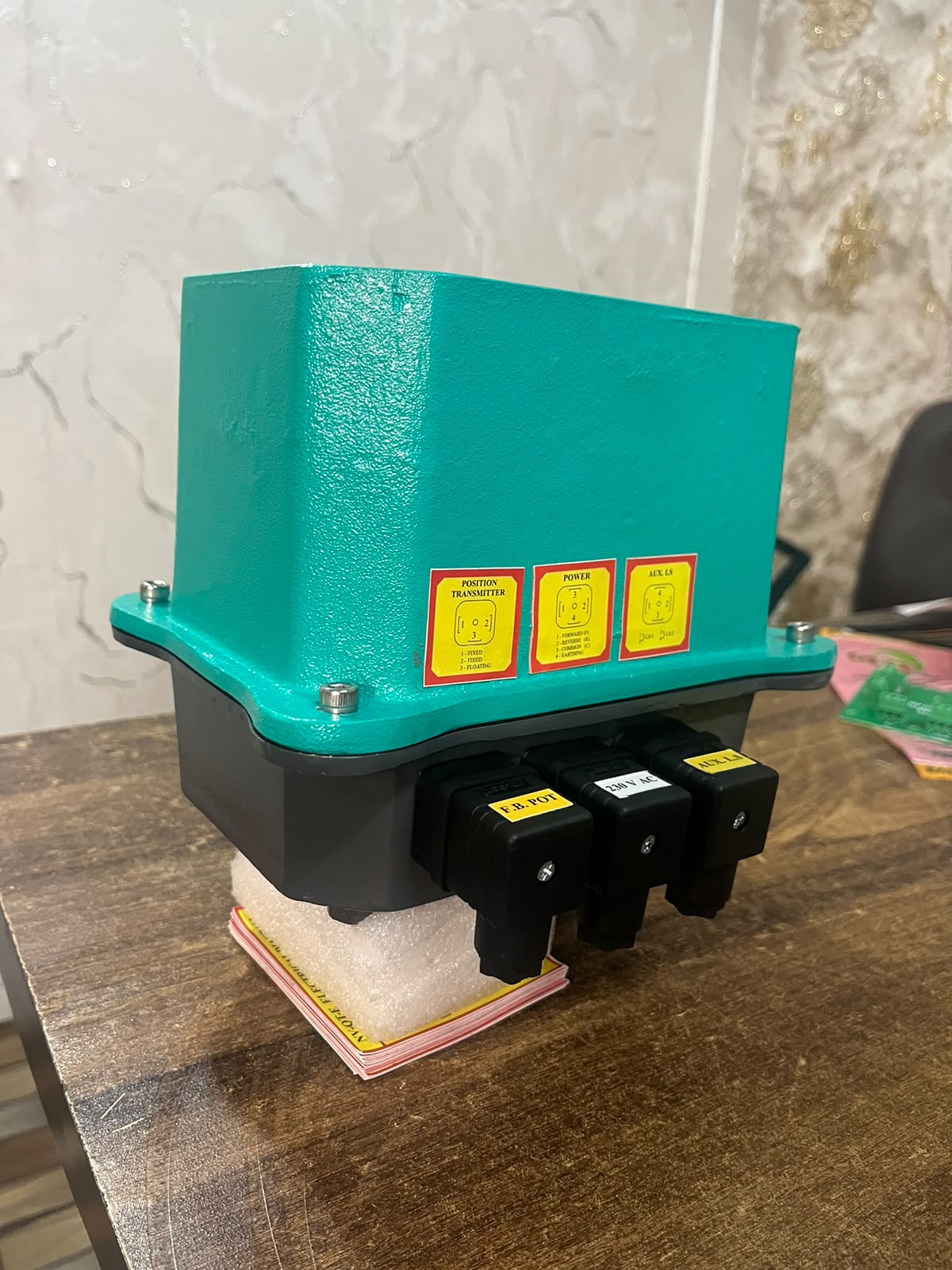

Our electrical rotary actuator range automates ball, butterfly, plug and damper valves across three model families — the compact low-torque QT-E/F series, the QT-A/B/C/D series, and the high-torque three-phase QTR series — each built on a die-cast/powder-coated aluminium body with a single blank gear-pinion reduction unit for smooth, reliable quarter-turn output.

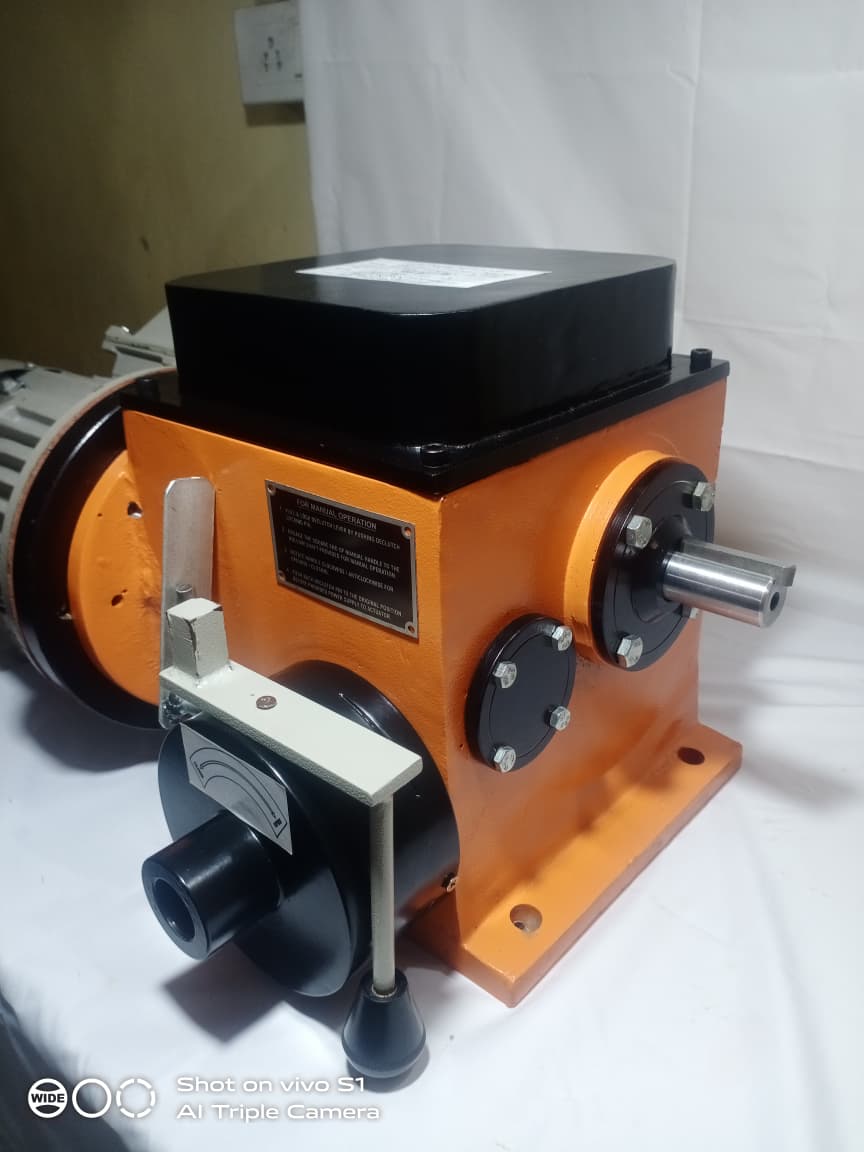

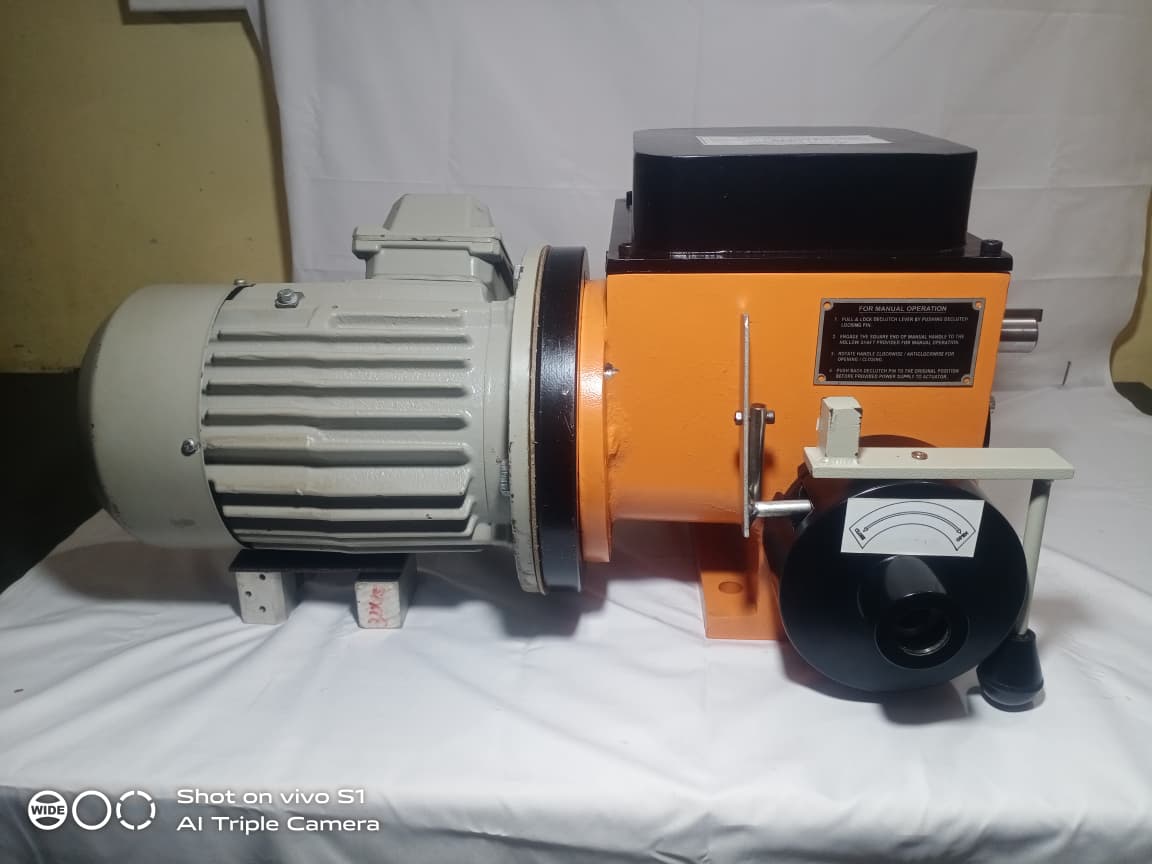

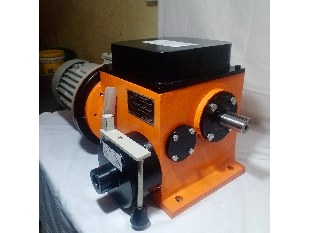

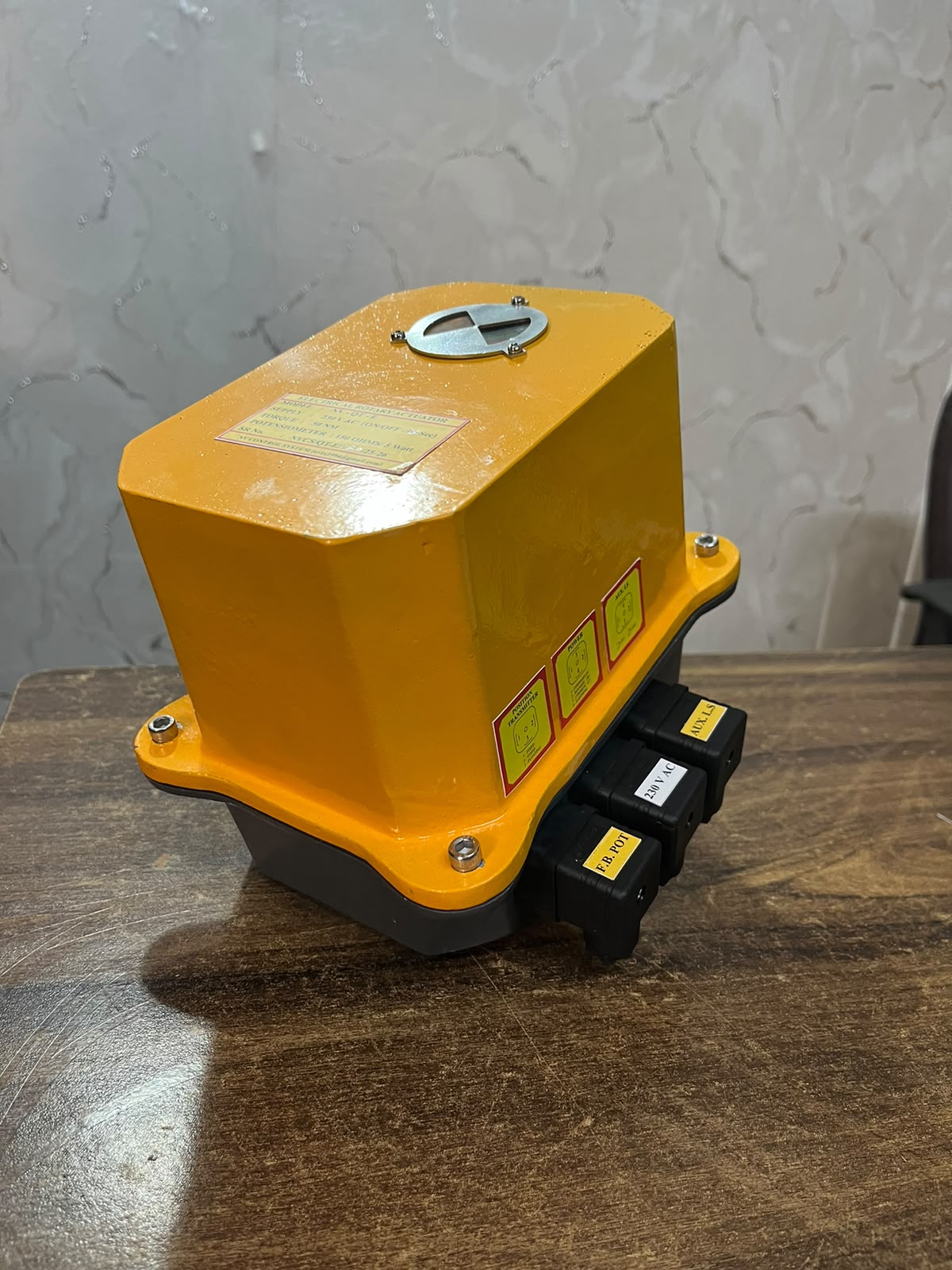

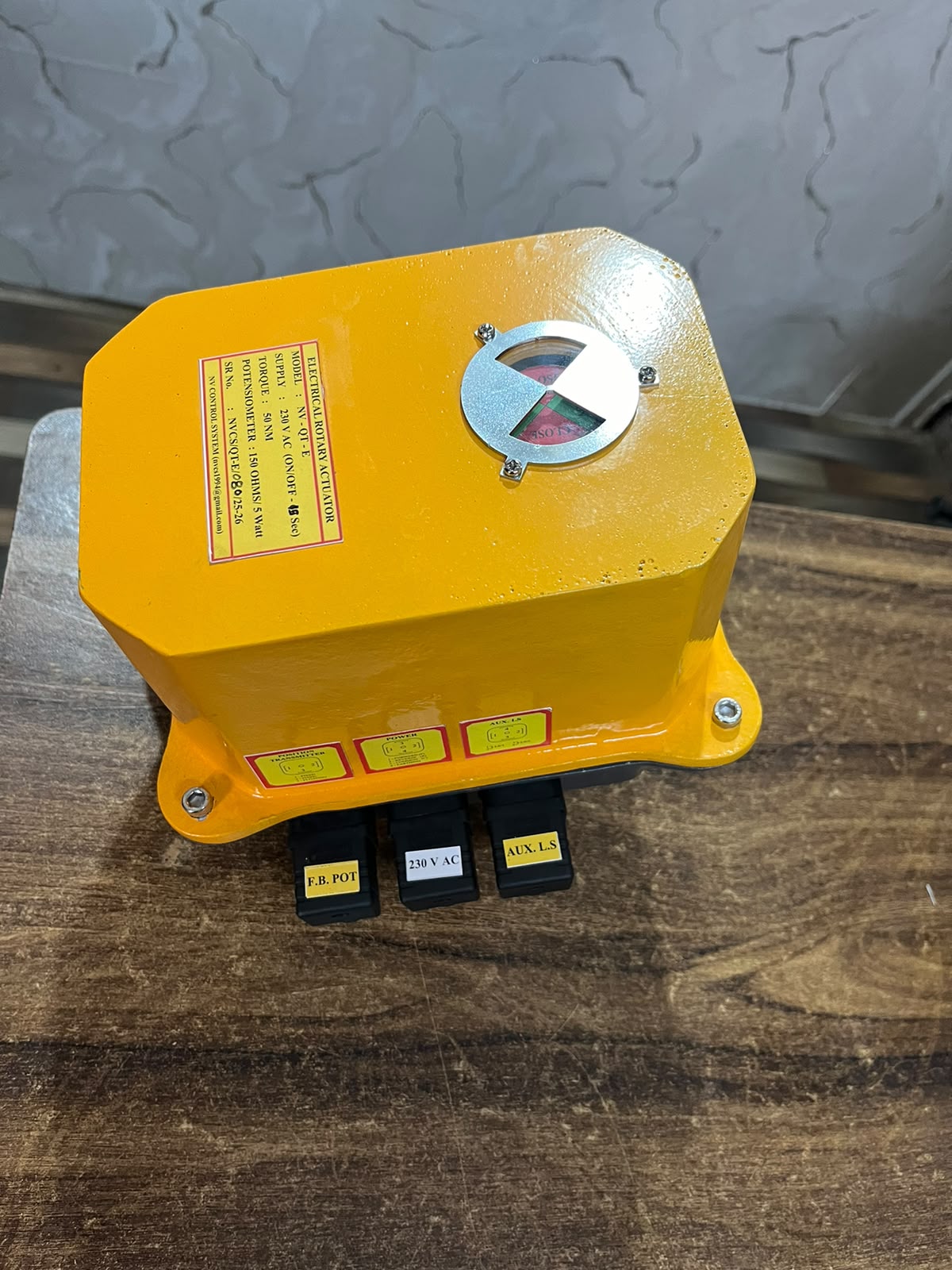

Every actuator carries a transparent position-indicator dome for at-a-glance open/close status, adjustable travel limit switches, and accepts both simple on/off changeover-contact control and 4–20 mA / 0–10V proportional control from a PLC, DCS or PID loop. The QTR series additionally includes a manual declutch lever for safe hand operation during a power failure.
Engineered For Reliable Performance
- Weatherproof IP-65 enclosure conforming to IS-2063
- Single blank gear-pinion reduction, hobb cut, black zinc plated

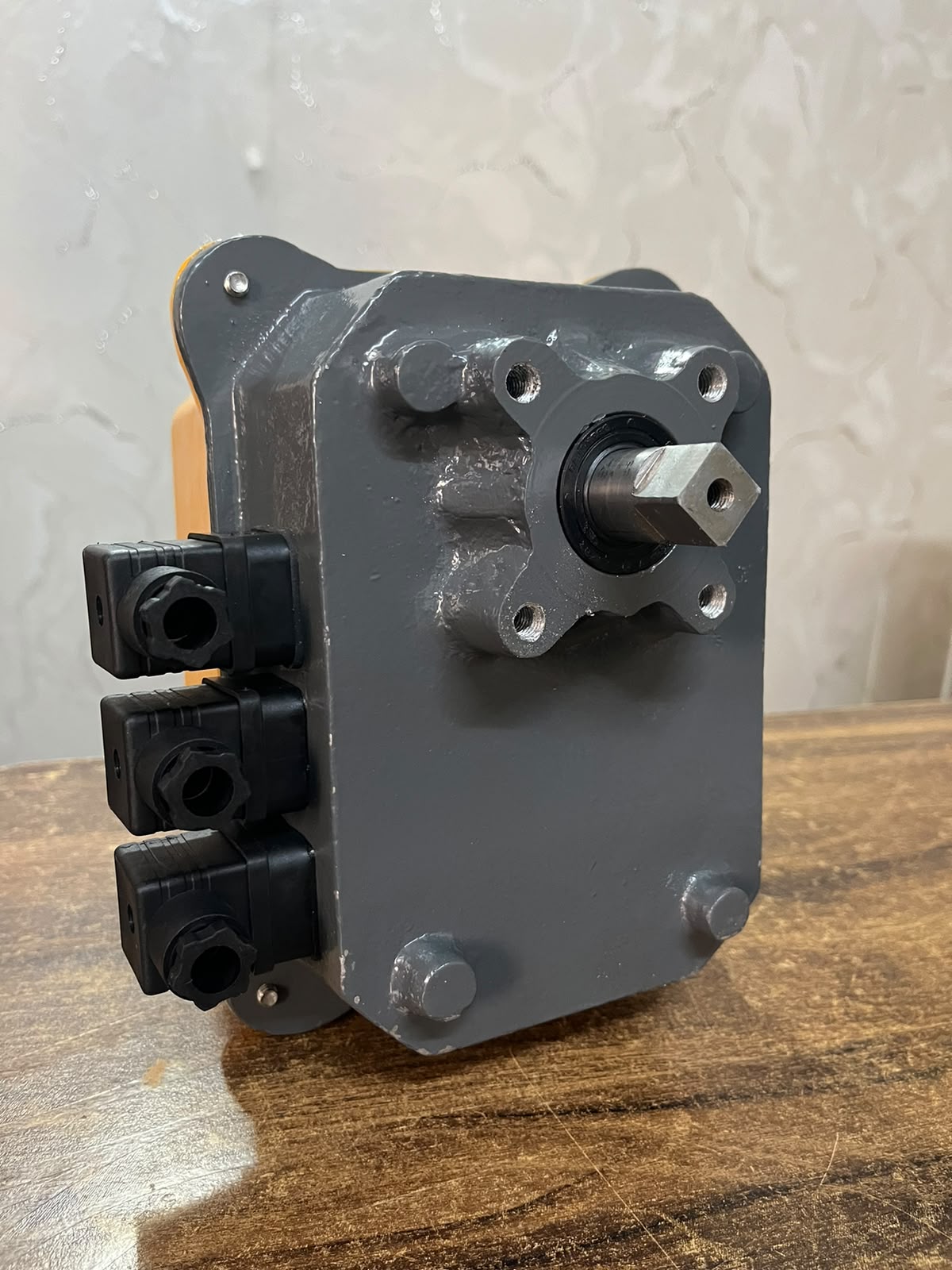

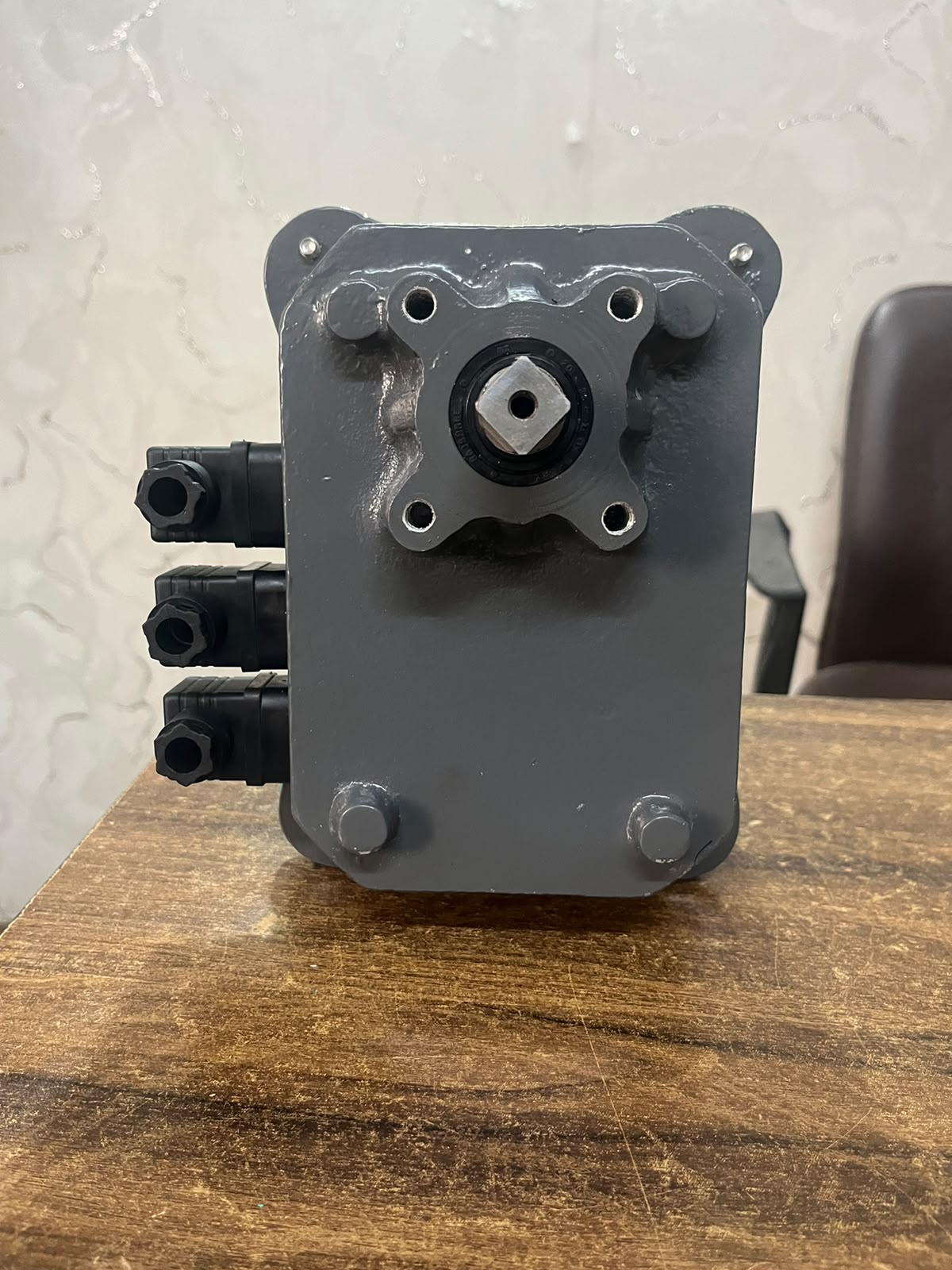

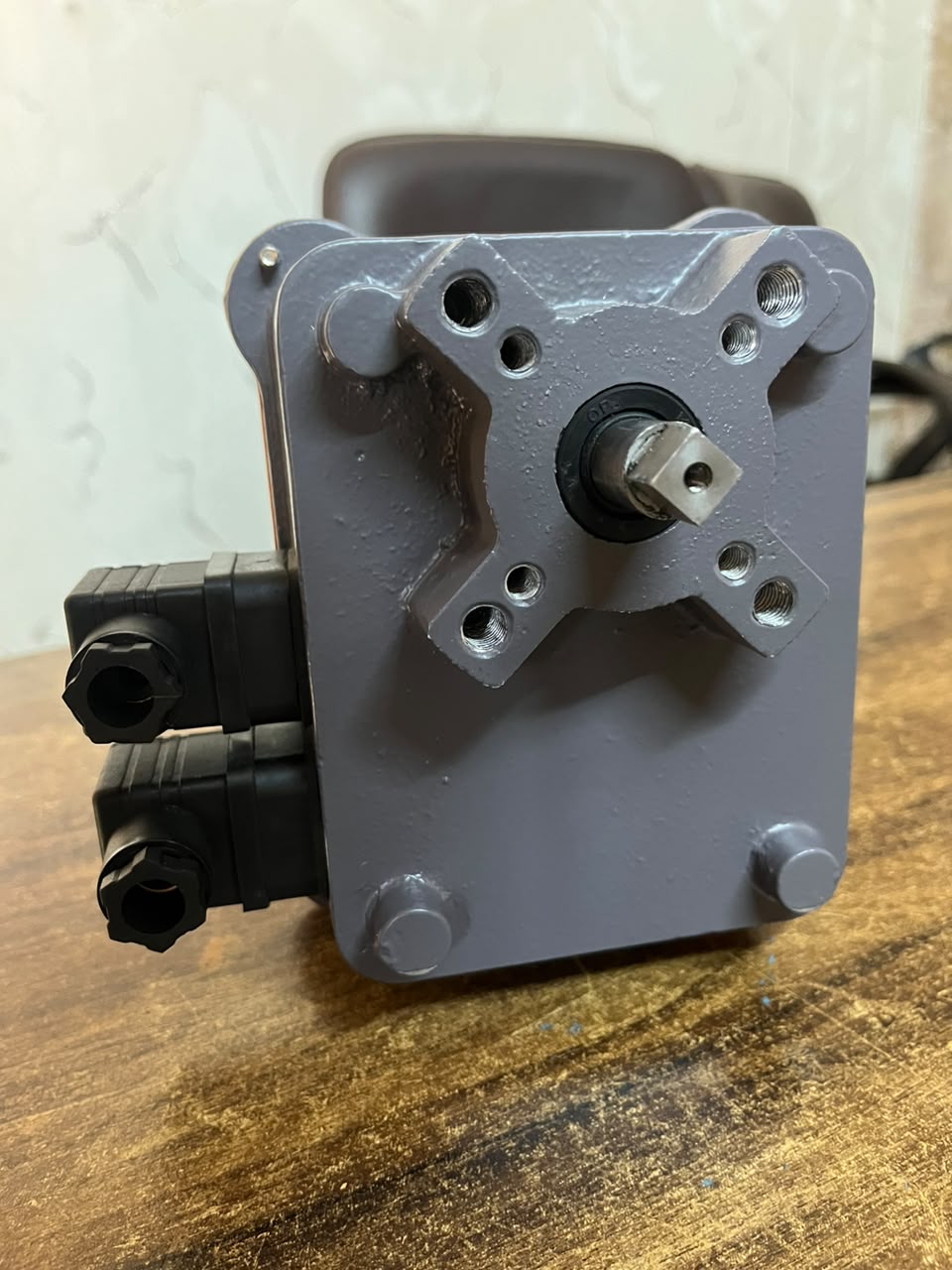

- AISI 410 stainless output shaft with square end
- Adjustable angular rotation, 30° to 180°

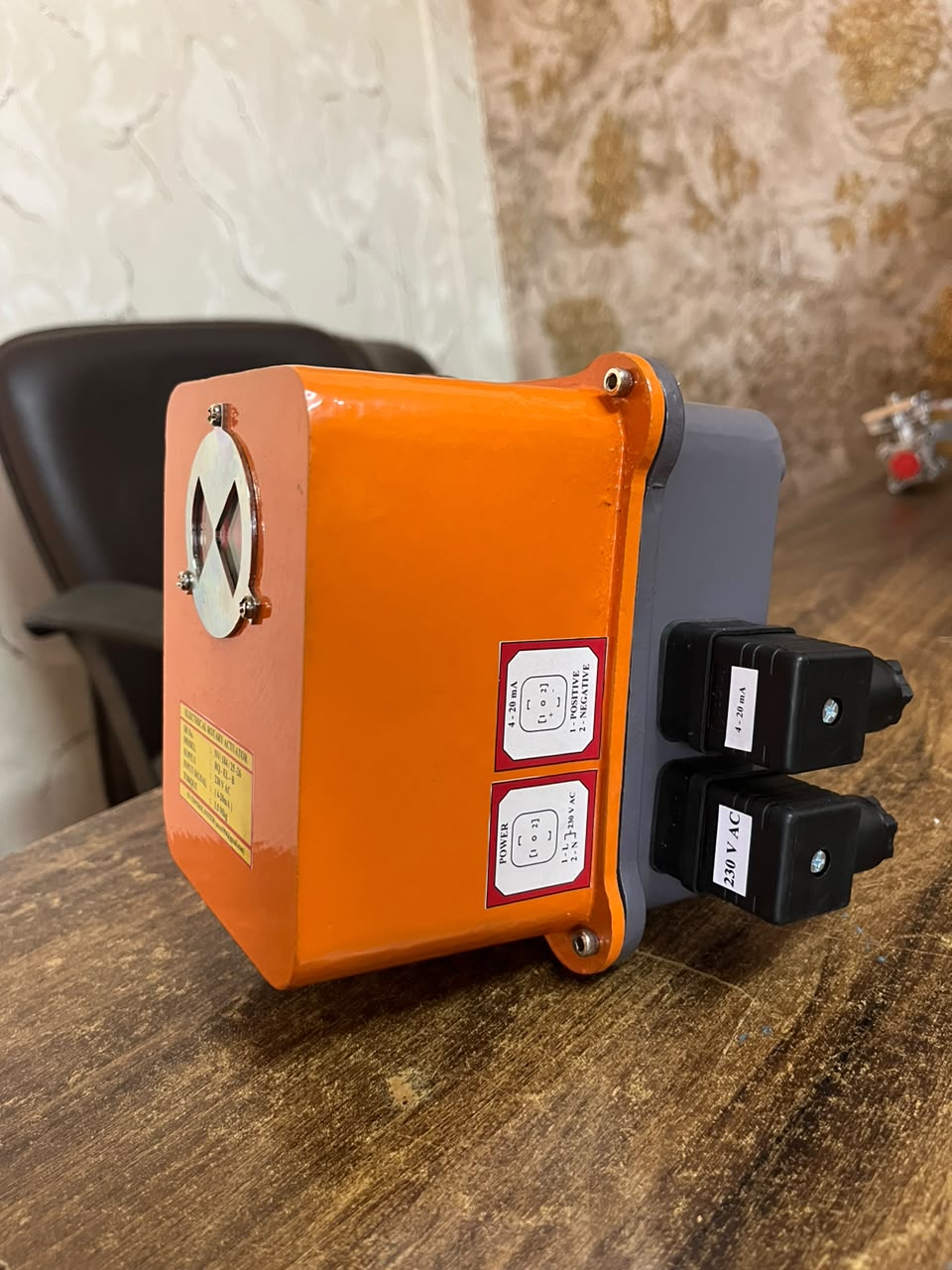

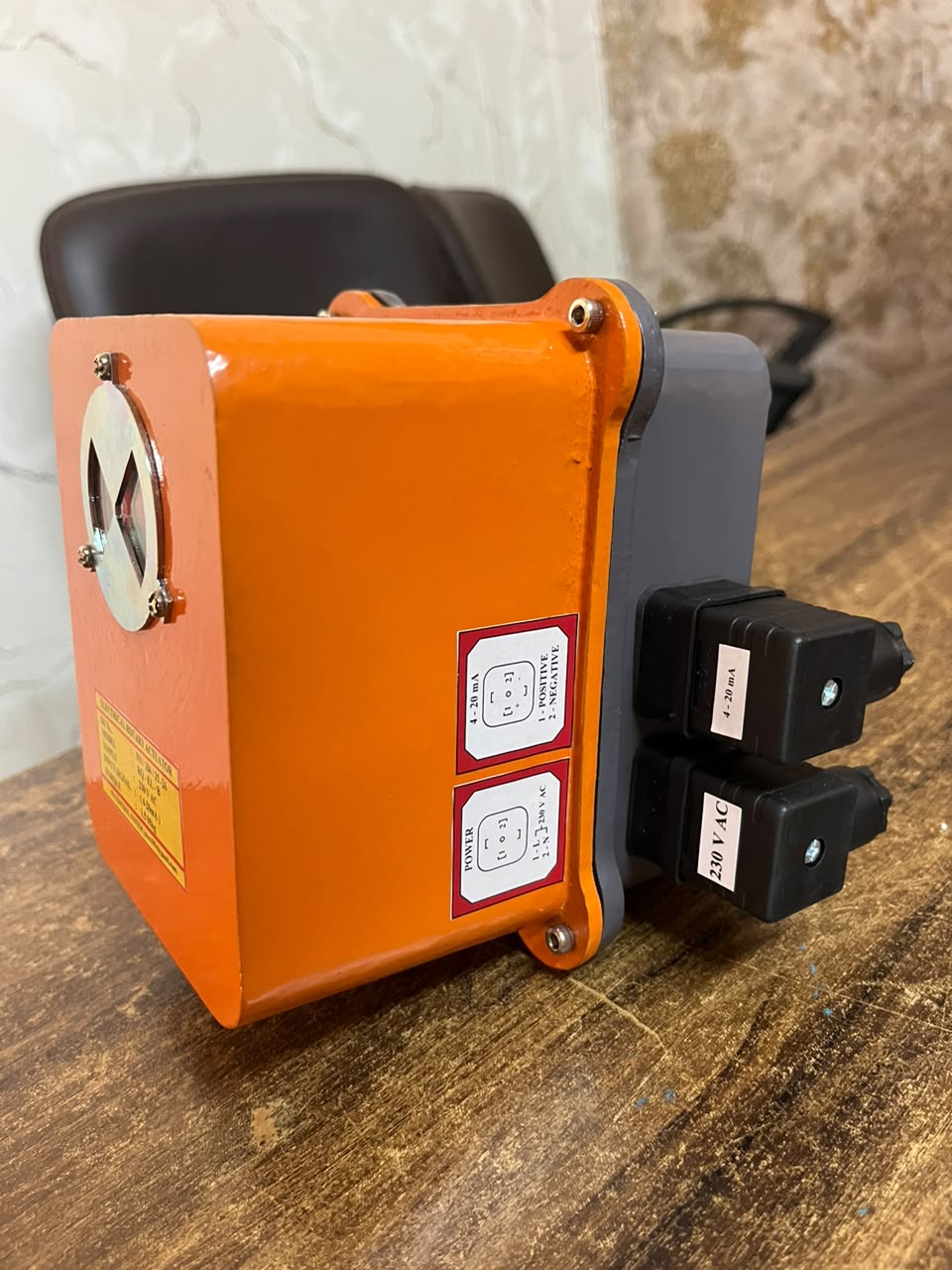

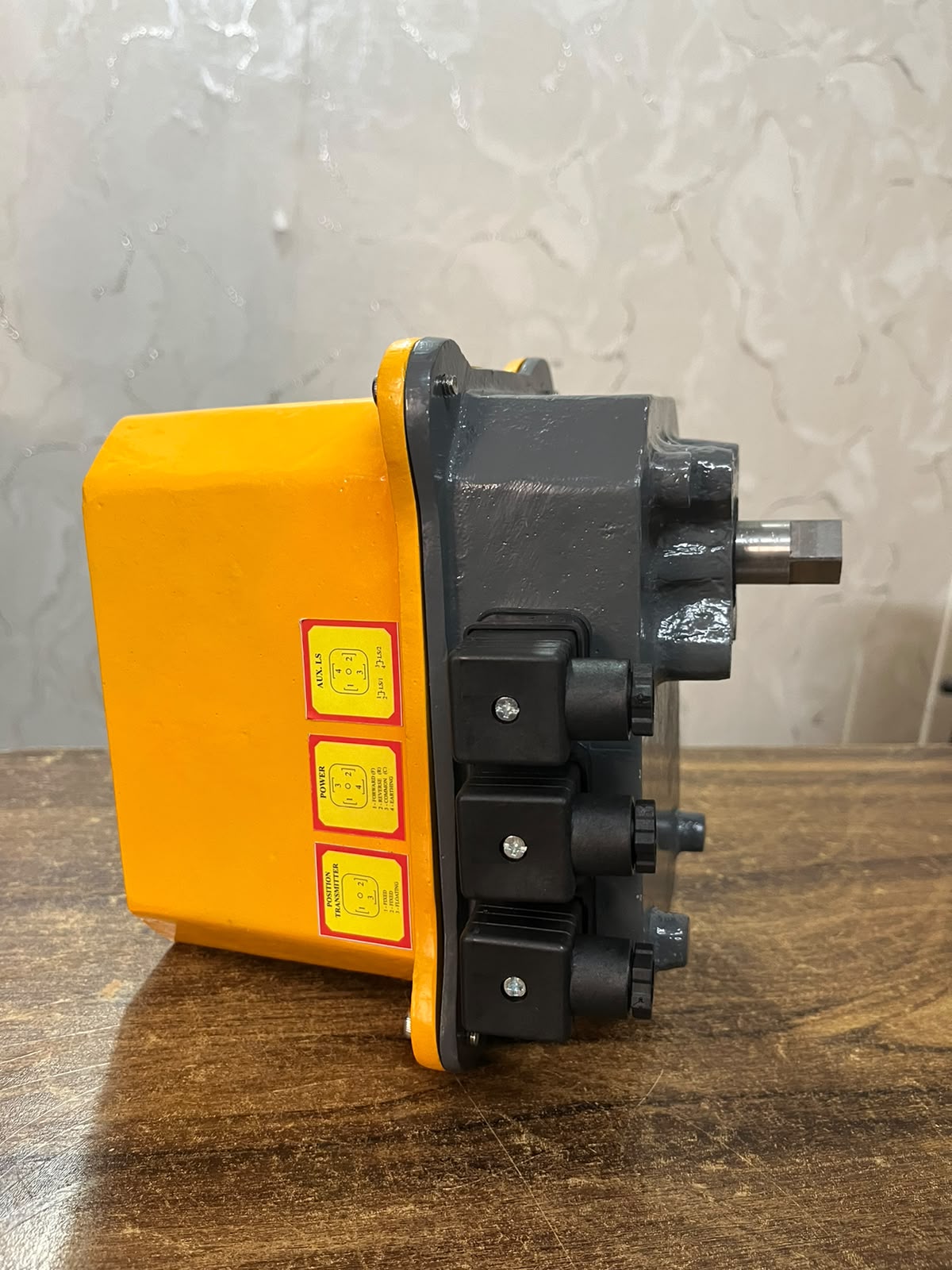

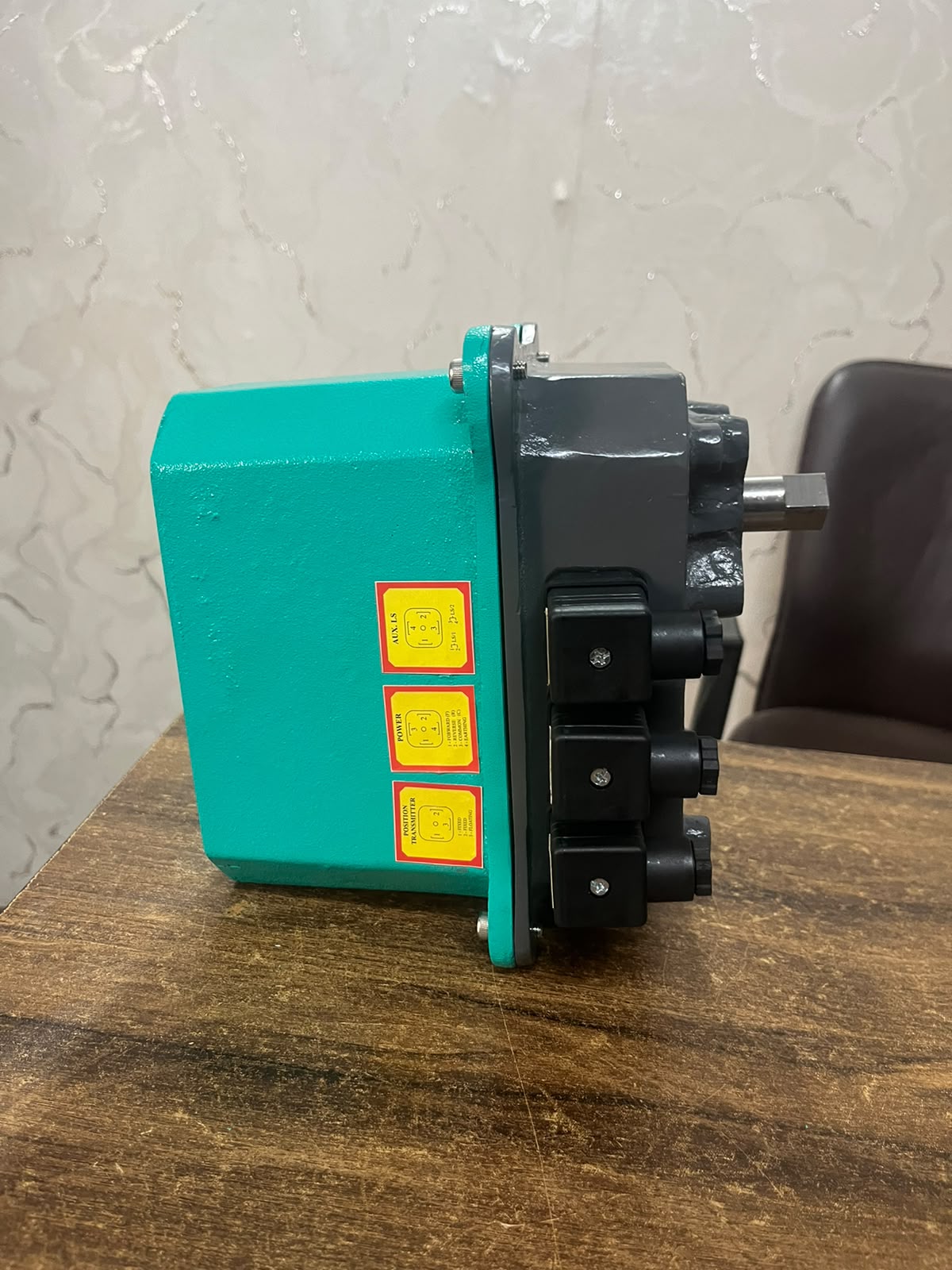

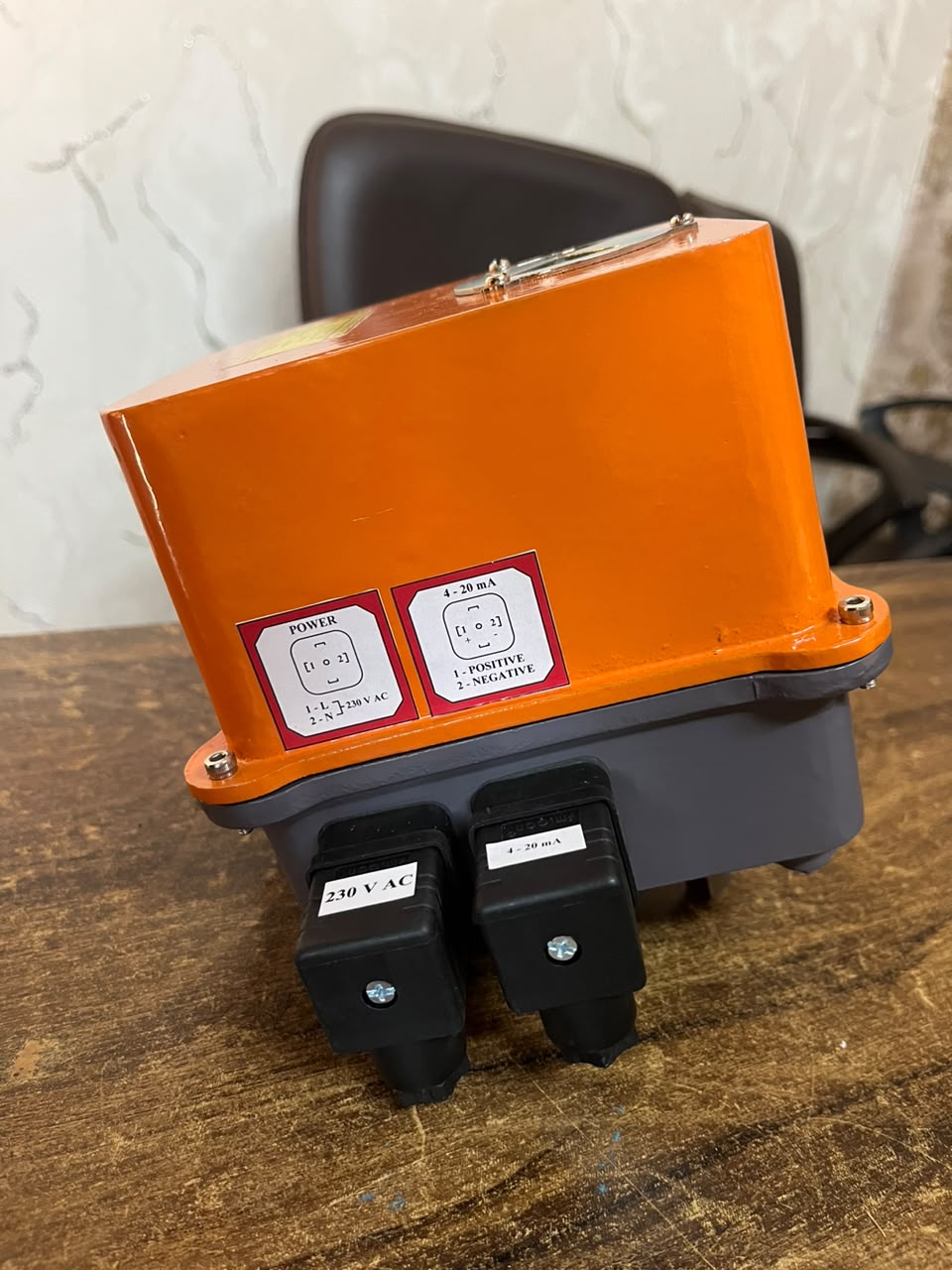

- On/off and proportional (4–20 mA / 0–10V) control input

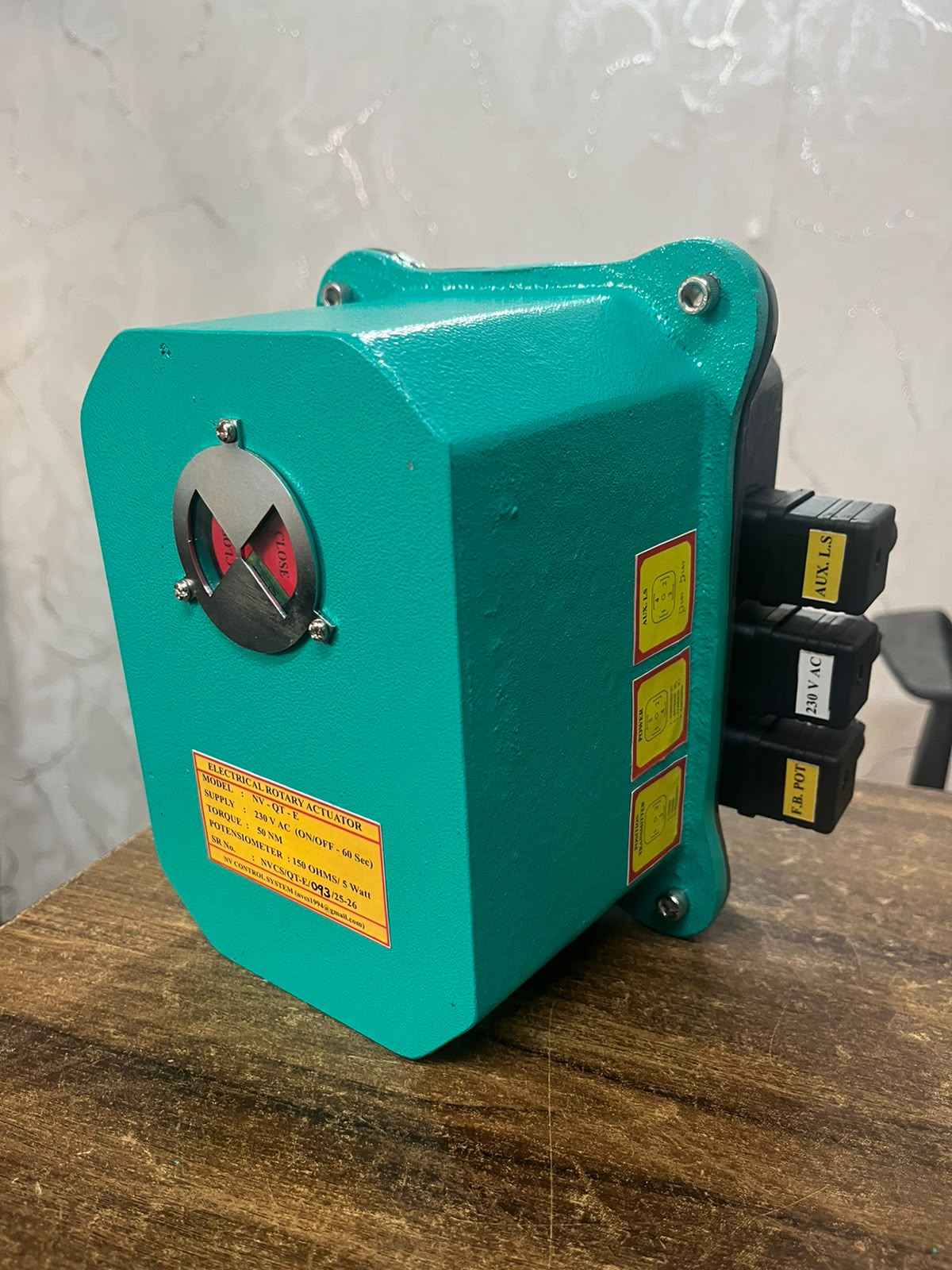

- Transparent dome position indicator with Open/Close markings
Specification Sheet
Standard configuration shown below — custom torque, pressure, material and end-connection combinations are available on request.
| Model series | NV-QT-E/F, NV-QT-A/B/C/D, QTR |
|---|---|
| Torque range | 20 Nm – 300 Nm (2 – 30 Mkg) |
| Enclosure | Aluminium casting, IP-65 (IS-2063) |
| Power supply | 230V single phase AC (QT); 415V three phase AC (QTR) |
| Time of travel (90°) | 15 / 30 / 45 / 60 / 90 seconds |
| Travel limit switches | 2 Nos., 5A @ 230V AC (1 NO + 1 NC); 2NO+2NC optional |
| Insulation class | 'E' or 'F' — conforms to IS 1271:2007 |
| Ambient temperature | 45°C |
| Mounting | Foot / Face |
